Specifications

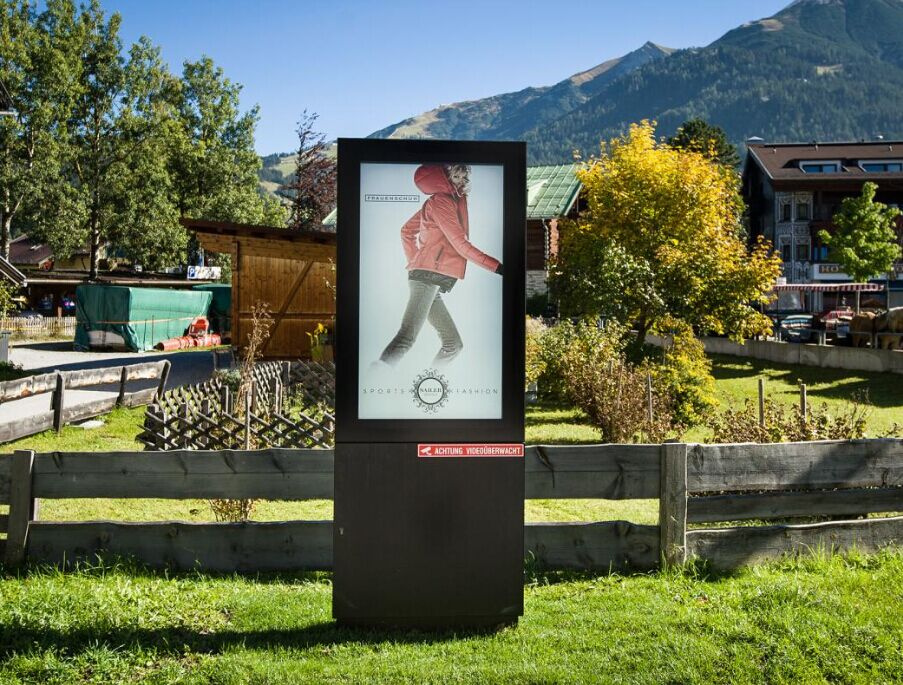

Double-side 47" Vertical Outdoor Digital Poster
-Super IPS panel
-High Brightness
-Work well under low and high temperature
47" Outdoor double-sided Kiosk / digital signage/ totem / Digital Poster / Screen
Highlighted Features
Double-sided solution
IP65 Display Waterproof
Work well under HIGH or LOW temperature
The screen quality doesn't get affected under direct sunlight circumstances.
Transflective High Brightness Screen. 700 cd/m2
Especially designed for interior spaces such as receptions, lobbies, waiting rooms or shop windows with a lot of sunlight.
Playthe.net designed digital signage. Fashionable outlook.
White or Alumunium finish.
| Items | Specification Details |
| CPU | Type | Mini PC |
| CPU | Intel Core 2 Duo |
| Power Consumption | 90W |
| Main Feature | 2.1 Ghz/800/3MB
HP 160 HDP 160GB |
| Screen | Screen Size | 47" (optional 42", 55" and 80") |
| Screen Type | LCD Screen |
| Resolution | Full HD 1920 x 1080 |
| Aspect Ratio | 16: 9 |
| Quantity | 2 (Double-side) |
| Brightness | 2000 cd/m2 |
| Temperature | It can resist a maximum temperature of 105º C. |
| Power Consumption | 360W |
| Main Feature | Super IPS Panel
HIGH Brightness
HIGH Transflective
HIGH Transparencea
HIGH Precision
HIGH Durability |
| Interface | RS232/USB/ HDMI/VGA/DVI |
| Stand | Type | Double-side 47-inch vertical outdoor digital poster |
| Material | AISI-304 stanless steel case |
| Components | Base with six screwed drills using M10 screws Frame with trapezoidal section. IP65 stainless case. Two doors with anti-vandalism antireflection 4+4 layered glas. |
| Finishing Layer | Oven-baked paint. |
| Electrical Equipment | Power Supply | AC 100-240V 50/60Hz |
| Power Sconsumption | 450W - 2A |
| Other | Protections (differential, magneto-thermal), ground connection, screw terminal and triple power strip. It complies with the Low Voltage Electro technical Regulations. |
| Color or Logo | Customizable |
| Dymensions and weight | Net Weight | 280 Kg. / 550 lb |
| Dymensions | 2.30 x 0.90 x 0.30 m. / 90.5 x 35.5 x 11.5 in. |
| Air- Conditioning | Power Supply | 240V 50/60Hz |
| Power Consumption | 580W |
| Cooling Capacity | 860W |
| Temperature Control | playthe.net intelligent temperature control system, keeping the case temperature between +10 and 35ºC, for an outside temperature range between -40 and +55ºC |
| Operation System | Windows 2000/ Windows XP/ Windows 7/ Windows 8/ Linux / Player without Operation System |
| Package | Safe packing with bubble foam, in wooden case with screws |
| Other Peripheral | Wi-Fi connection and Ethernet connection, Web-camera,USB Port, and etc |
DEDI HK Technology Co., Ltd, founded in 2009, is a professional and leading HI-TECH company which specializes in R&D, production, sale of high-brightness LCD panel with LED backlit. Through independent innovation, it has been committed to provide customers with energy-efficient, environmental, outdoor LED panel and all-weather outdoor LCD advertising machine.
Company's business scope covers more than 100 countries and regions, products are widely used in advertising machine, digital signage, industrial computer, Kiosk, electronic newspaper, military aviation, medical equipment, display system on high-speed railway station and metro station, etc. At present, the display size of LCD panel with LED backlight from 7 inch to 82 inch, its brightness from 500 nit, 1000 nit, 1500 nit, 2000 nit to 2500 nit.
Company has comprehensively implemented ISO9001 quality management system. Production is conducted by the standard of RoHS and WEEE. On production process, we value every detail to fulfill your expectations. High-quality product and good service is provided by us at the principle of "Technology and science prospering enterprise, service upmost".
Company's direction: Client's reputation is to honor, and customer win-win is the mission
To science and technology uphold: "user experience" of the service concept, workflow management technology, exquisite manufacturing scientific, standardized production technology, perfect security system, strict working attitude, high quality service, excellent quality assurance, rational price, win-win business philosophy, in good faith with customers more professional cooperation.
