Guangzhou YunQiang Electronics Co., Ltd. >> 4 Channels Digital High Power Amplifier Fp10000q

4 Channels Digital High Power Amplifier Fp10000q

4 Channels Digital High Power Amplifier Fp10000q
Price: US $ 400-550/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: FP10000Q
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Protection: Full
Class: Class D
Type: Professional Amplifier
Usage: Stage, Stadium, Gymnasium
Used For: Professional
Tube Type: Transistor Amplifier
Function: Post Amplifier
Output Number: 4
Element Number: Push-Pull Amplifier
Conductive Mode: D
Sound Channel: 4.0
Voltage: Can Be Order

Product Description

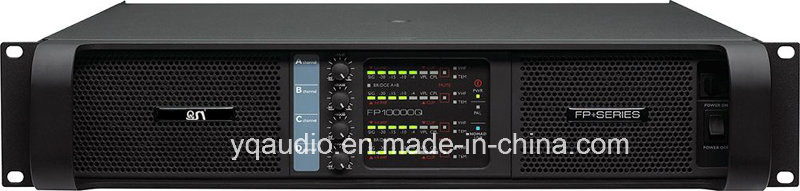

4 channels Digital High Power Amplifier FP10000Q

1pc sample accepted

welcome OEM, warranty 2 year


Parameters:

Channel number: 4CH

8Ohm stereo, 1350W

4Ohm stereo, 2100W

2Ohm stereo, 2500W

8Ohm bridge: 4200W

4Ohm bridge: 5000W

Gain: 35dB VPL:101V

THD+N: <0.1%

THD: <0.05%

S/N ratio: >112dB

Crossover: >70dB

Frequency: 6.8Hz-34KHz

Input impedance: 20Kohm

Gain selecrable: 23,26,32,35,38,41,44dB

Input connector: XLR

Output connector: Neutrik speakon

output bridge modeL A+B-CH: A is input source, A+B, C+D -CH: A,C is input source

Cooling: 2 fans, front to rear airflow, temperature control

Size: 483*88*398mm

weight: 15kgs

outlook: black painted chassis, with black painted steel front


P+ series Switching Power Amplifier Specification
ITEMFP7000FP9000FP14000FP8000QFP10000Q
Output Power20-20kHz, 1W with 1 khz
8ΩStereo Power(RMS)1500WX21800WX22350WX2800WX41350WX4
4ΩStereo Power(RMS)2800WX23000WX24400WX21400WX42100WX4
2ΩStereo Power(RMS)3500WX24500WX27000WX21600WX42500WX4
8ΩBridged Power(RMS)5600W6000W8800W2800WX24200WX2
4ΩBridged Power(RMS)7000W9000W14000W3200WX25000WX2
Frequency Response(+o/-0.3dB,1W/8Ω)20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W<0.1%
Signal-to-Noise Ratio>112 dBA
Channel separation (Crosstalk) at 1 kHz>70 dB
Input Connectors (per channel)3-pin XLR, electronically balanced
Output Connectors (per channel)Binding Posts 2-pole
ClassTD
TourClass ProtectionACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input
Operating voltage, 230 V / 115 V nominal130-265 V / 65-135 V
Voltage Gain(dB)23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance20 kOhm
Level adjustment (per ch.)Front-panel potentiometer, 31 position detented from -inf to 0 dB
Dimensions (W×H×D)483×88×396mm
Packing dimension560×180×500mm
Net weight(kg)12
Gross weight(kg)16.3


Guangzhou YunQiang Electronics Co., Ltd. is a professional audio manufacturer which has R& D, Production department, Marketing Dept., and Technical and service Dept.,

The main products include: Power Amplifier, Karaoke amplifier, Professional Speaker, Karaoke speaker, Sound Mixer, Audio processor and Conferencing systems.

Nowadays, in professional sound industry, more and more people are seeking for amplifiers with light weight, high power output, high sound quality and high stability.

To get good sound quality, we should have high quality components. And to ensure the stability, we must solve the problem of heat dissipation. Now, we have this amplifier FP14000, FP10000Q, FP-8000Q. Our FP14000, FP10000Q, FP-8000Q is Class TD switching amplifier fixed with NOVER (from UK) power capacitors, ON-Semi power transistors other high quality electronic spare parts. Professional circuit design and actual copper heat sink with better structure make fast heat dissipation possible. And fast heat dissipation contributes to high stability of the amplifier. Once you have our amplifiers at your hands, open the chassis, you will find artwork and detail difference. The swich power amplifier can be used to drive line array loudspeaker systems in touring, living show and other applications with high requirement on sound quality and stability.

Since the foundation of our enterprises, we have been concentrating on designing new products, doing research on new sound technology, training our staff, as well as improving our quality to products and management system. And now we have had a unique management experience, advanced production equipment, abundant design capability, and the large marketing network and after-sales service system.

Now we have passed newest CE, FCC, RoHS, SGS, CCC, ISO9001 on March, 2015.

2016 Prolight + Sound Guangzhou

Our booth is A70 4.1.

Address: Area A, China Import & Export Fair Complex. No. 380, Yuejiang Zhong Road, Guangzhou, China.

Time is 29 February~3th, March, 2016
