| Prod Model: |
G36D |
| Markets: |
North America,Eastern Europe,Oceania,Eastern Asia,Western Europe |
| Brand: |
Sinewave |
| Type: |
Home Amplifier |
| Package: |
Yes |
| Channel: |
4 |
| Power: |
4 X 200W |
| Processing: |
DSP |
| AC Supply: |
100-265VAC |
| Input Source: |
Analog(Stereo)/Coaxial/Optical/USB2.0 |
| Function: |
Pre-amplifier |
| Tube Type: |
Transistor Amplifier |
| Output Number: |
4 |
| Used For: |
Professional |
| Conductive Mode: |
D |
| Usage: |
Hi-Fi |
| Voltage: |
100-265VAC |
| Sound Channel: |
4 |
Product Description

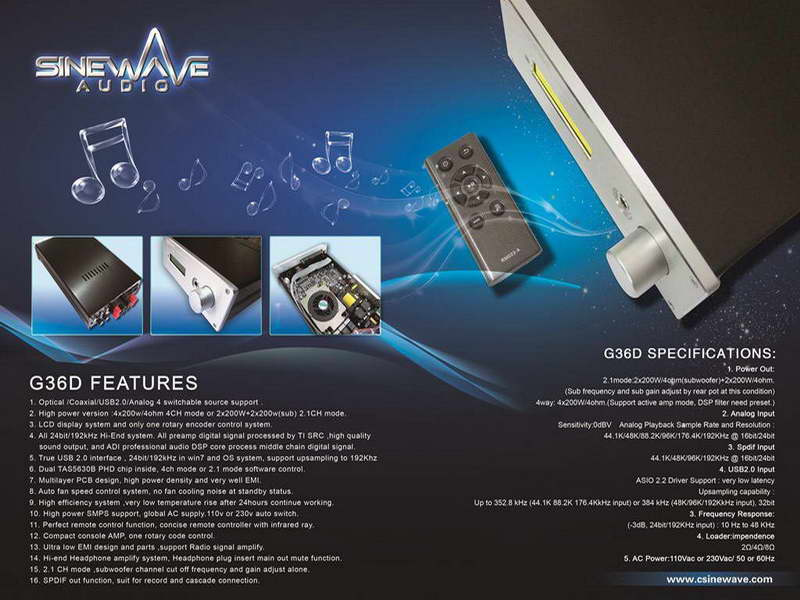

FEATURES
Optical /Coaxial/USB2.0/Analog 4 switchable source support.
High power version: 4X200W/4ohm 4CH mode or 2X200W+2X200W(sub) 2.1CH mode.
LCD display system and only one rotary encoder control system.
All 24bit/192kHz Hi-End system. All preamp digital signal processed by TI SRC, high quality sound output, and ADI professional audio DSP core process middle chain digital signal.
True USB 2.0 interface, 24bit/192kHz in win7 and OS system, support upsampling to 192kHz
Dual TAS5630B PHD chip inside, 4CH mode or 2.1 mode software control.
Multilayer PCB design, high power density and very well EMI.
Auto fan speed control system, no fan cooling noise at standby status.
High efficiency system, very low temperature rise after 24hours continue working.
High power SMPS support, global AC supply. 110V or 230V auto switch.
Perfect remote control function, concise remote controller with infrared ray.
Compact console AMP, one rotary code control.
Ultra low EMI design and parts, support Radio signal amplify.
Hi-end Headphone amplify system, Headphone plug insert main out mute function.
2.1 CH mode, subwoofer channel cut off frequency and gain adjust alone.
SPDIF out function, suit for record and cascade connection.
SPECIFICATION:
| Power Out: | 2.1 mode: 2X200W/4ohm(subwoofer)+ 2X200W/4ohm
4way mode: 4X200W/4ohm |
| Input | Analog: 44.1K/48K/88.2K/96K/176.4K/192kHz @ 16bit/24bit
SPDIF: 44.1K/48K/96K/192kHz @ 16bit/24bit
USB2.0: 352.8 kHz (44.1K 88.2K 176.4KkHz input) or 384 kHz (48K/96K/192KkHz input), 32bit |
| Frequency Response | -3dB, 24bit/192KHz input 10 Hz to 48 KHz |
| Loader | 2Ω/4Ω/8Ω |
| AC Power | 110Vac or 230Vac/ 50 or 60Hz |
![]()
![]()
![]()
![]()
Establishing in 2009, Sinewave Electronics Co., Ltd locates in the beautiful city HangZhou China. We have rich experience in High Efficiency amplifier and digital audio processing system. We have developed lots of AMP modules, PRO amplifiers and digital processing products for our customers from across the world.
Under the goal of "The Relentless Pursuit of Perfection", our company keeps increasing quality level and developing new technology to meet customers' demand.
