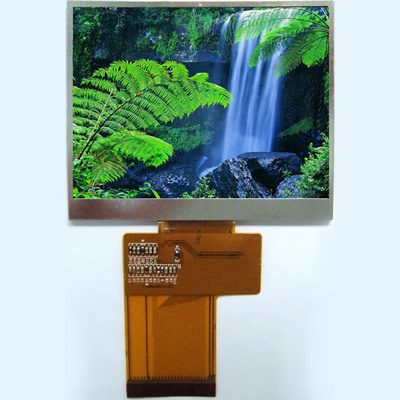

4.3" TFT Display Pop LCD
| Price: |
US $ 25/Piece |
| Trade Terms: |
FOB |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,Money Gram,Western Union |
Item Specification
Module Number: BD043NDH02
Diagonal Size: 4.3 "
Resolution: 480 X 272
Module Size (mm): 105.5X67.2X2.9
Active Area (mm): 95.04X53.86
Interface: RGB
Polarizer: Transmissive
Backlight: LED (300 CD/m2)
Product Name
BD043NDH02
Packaging & Delivery
Packaging Detail:original packing
Delivery Detail:2-3 weeks
Product Description
Model
BD043NDH02
Size
4.3"
Resolution (pixel)
480(RGB) X 272 (WQVGA)
Active Area(mm)
95.04*53.86
Pixel Pitch (mm)
0.198x0.198
Display Mode
TM,NW
Uniformity(%)
80
NTSC(%)
50
Color Depth
16.7M
Viewing Angle (R/L/U/L)
70/50/70/70
Brightness (cd/m²)
300
Contrast Ratio
500:1
Response Time (ms)
20(on+off)
Outline Dimension (mm)
105.50*67.20*2.9
Life Time
20,000(typ.)
Light Source
LED
Temperature Range
operating: -20 to +70°C
storage: -30 to +80 °C
Humidity
operation: 90 (%RH)
storage: 90 (%RH)
Surface Treatment
Anti-Glare(3H)
Electrical Interface
RGB 24 bits
ROHS Compliance
ROHS Compliance
| Prod Model: |
BD043NDH02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 4.3": |
TFT Module |
| Application: |
Equipment |
| Feature: |
LED Backlight Display |
| Type: |
TFT |
| Screen Size: |
4.3 |
| Interface Type: |
RGB |
Yaosheng provide total solutions for LCD panels and modules. We support both monochrome STNs and full-color TFT LCDs. We provide full customized monochrome STN, and semi-customized TFT modules. We are supplying a wide variety of LCD modules to meet the ever-growing demands.
Yaosheng Solutions get strong support from Tianma, Truly, and Innolux, we provide flexible support to our customers, fast delivery, flexible MOQ, and competitive cost.
Please check the following website to find the products supported by us.
Our products include LCD panels of TN, STN, FSTN; LCMs with COG, COB, TAB; And TFT LCD modules.
Custom LCD Panels: Segment, icon, chracter, and mixed
Custom / Standard Character: 16X1, 16X2, 16X4, 20X2, 20X4, 24X2, 40X2, 40X4
Custom / Standard Graphic: 128X64, 128X128, 160X128, X160X160, 240X128, 240X64, 320X240
Semi-custom / Standard TFT Modules: 2.8", 3.5", 4.3", 4.7", 5.0", 7.0", 10.4"
All of our displays are RoHS compliant, which have been used in wide range of applications: Communication, Medical, Instrumentation, Metering, and Industrial applications.
We endeavour to serve our customers with Quality Products, Competitive Cost, Excelled Service, and Fast Delivery.
