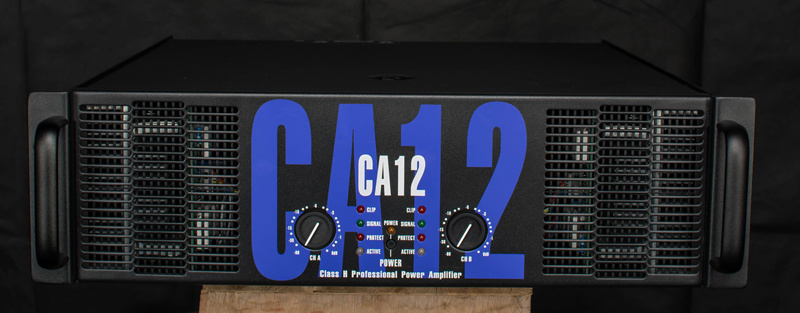

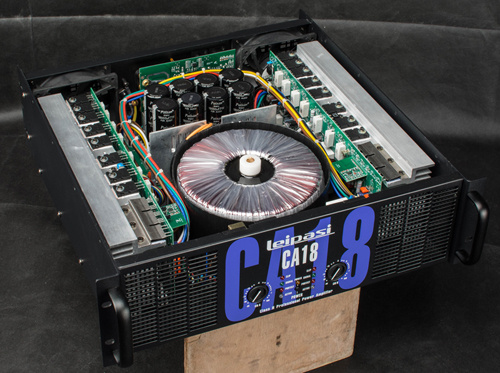

32 Pieces Transistors 3 Tier Class H Power Amplifier

32 Pieces Transistors 3 Tier Class H Power Amplifier
Price: US $ 100/Piece
Trade Terms: EXW
Min Order: 50/Piece
Pay Type: T/T
Prod Model: CA12
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Watt: 800W
Transistor: 32 Pieces
Type: Professional Amplifier
Usage: Hi-Fi
Used For: Professional
Tube Type: Transistor Amplifier
Function: Post Amplifier
Voltage: AC 220V
Output Number: 2
Sound Channel: 2
Conductive Mode: H

Product Description

32 Pieces Transistors 3 Tier Class H Power Amplifier

Feature
1.CA power amplifier use SMD technology

2.Can endure 2Ω stereo load,bridge 4Ω load,suit for drive line array speaker system

3.Excellent materials like Toshiba and copper transformer

ModelCA12CA18CA20 CA30
Stereo power 8Ω2x800W2x1100W2x1300W 2x1500W
Stereo power 4Ω2x1200W2x1800W2x1950W 2x2250W
Stereo power 2Ω2x1600W2x2200W2x2600W 2x3000W
8Ω BLT2400W3600W3900W 4500W
4Ω BLT3200W4400W5200W 6000W
Frequency Response5-20K+/-0.5dB
THD+N<0.05%@8Ω 1KHz 1/4Po
S/N Ratio>98dB                                      >100dB                                    >102dB                                     >103dB
Slew Ration20V/u S
Damping Factor>400
Crosstalk>60dB@8Ω 1 KHz
Input Impendance20KΩ(Balance)/10KΩ(Unbalance)
Input Sensitivity0.775V/1.0V/1.4V
ProtectOverheat short circuit,DC,limit and-softstart,Output relay-zero Current Switch,Intellctual Clip limiter
Height3U
Gross Weight41KG42.5KG43KG                                                          47KG
Packing Dimensions650x585x200mm                                                                                                            730x585x200mm



Enping Leipasi Electronics Technology Co Ltd is professional audio manufacturer and our factory is located in Enping city, Guangdong, China. We are dedicated to manufacturing high qualityprofessional power amplifier, equalizers, crossovers and signal processors.

Over past years, we has earned great reputation among our partners by providing high performance audio products that is trusted but also maintaining a high level of service and after sales service.

We have been the manufacturer of professional power amplifier for years. We have the excellent technology and use the superior materials which are mostly imported from Japan, Korea and so on. We exported the amplifiers to all over the world, such as America, Japan, Thailand, ect.

There are many different series of products. Such as CA, CK, MT, FP, HA series. The watt range from 15W to 1500W. All series of our goods are high quality, stable and have a lower price, which can help you to reduce your cost and win your market.

OEM and ODM service are also offered to you. Together with the team of engineers, we are dedicated to research and develop new professional audioto keep up with current market's demand.

It is your good choice to choose our products, and it is going to be the pride of our company to build a business relation with you.
