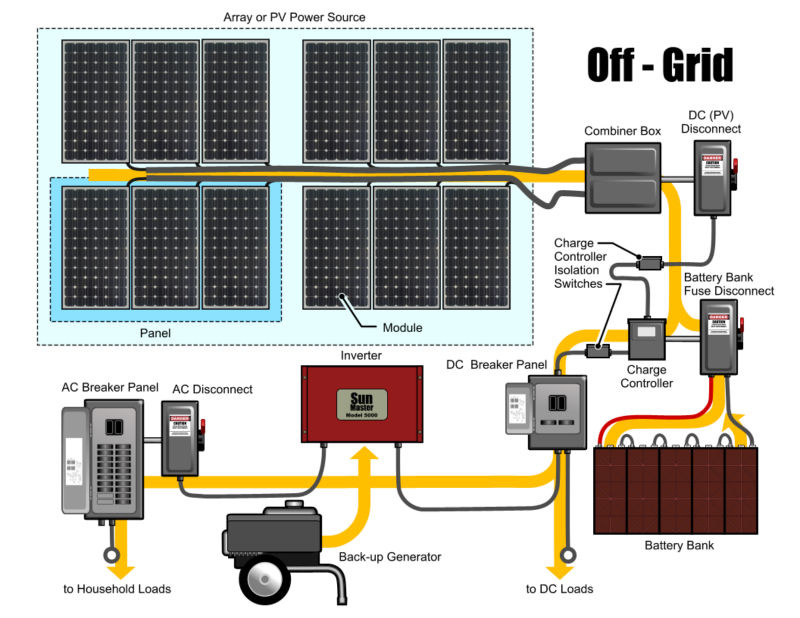

| Main components: |
|
| Parts | Spec | QTY |
|
| Solar panel | 20V100W | 27 |
|
| Controller & Inverter | 24V3000W | 1 |
|
| Batteries | 12V150AH | 18 |
|
| Accessories | Cable |
|
| Technical data: |
| Capacity | 3000VA |
| System voltage | 110VDC |
| Best output power everyday | 10134WH |
| Inverter | Output wave | Pure sine wave |
| Output voltage | AC110/220V |
| Output frequency | 50HZ/60HZ |
| PREcision of output voltage | ±3% |
| Precision of output frequency | ±0.1% |
| False output wave of AC | <3% |
| Overload ability | 120%, 30 seconds |
| Invert efficiency | >85% |
| Solar panel | Pmax | 2700W |
| Vmp | 157.5V |
| Imp | 17.1A |
| Battery | Capacity | 108V300AH |
Features:
High tech
High efficiency
Good quality
High reliable
Super long life span
Application:
Nomads, families, island, none or short of electricity area, Satellite Ground Stations, weather stations, forest fire stations, etc.
Warranties:
Solar panel: 10 years
Battery: 3 years
Power box: 2 years
Solar panel specification:
| Spec | | 100W |
| Power (W) | | 100 |
| Dimension of cell (mm) | 125*156 |
| Dimension of panel (mm) | 1196*680*40 |
| Arrangement way (pcs) | 4*9 |
| Weight (KG) | 10 |
| System voltage(V) | 12 |
| Pmax (W) | | 100 |
| Vmp (V) | | 17.5 |
| Imp (A) | | 5.8 |
| Voc (V) | | 26.3 |
| Isc (A) | | 6.37 |
| Physical Specification: |
| Nominal Voltage | 12V | |
| Nominal Capacity (10HR) | 150AH | |
| Length | 484±2mm | |
| Width | 168±1mm | |
| Container height | 240±1mm | |
| Total Height(with terminal) | 240±1mm | |
| Weight | Approx46.5Kg(102.5lbs) | |
| Standard Terminal | F7 (standard) | |
| Electrical Specification: | |
| Rated Capacity | 20 hour rate(8.1A) | 162AH | Constant-Voltage Charge | Cycle | Charging Current: <37.5A;
Charging voltage: 14.5V-15V at 25ºC
Temp. Coefficient: -24mV/ºC; |
| 10 hour rate(15A) | 150AH |
| 5 hour rate(26A) | 130AH |
| 3 hour rate(39A) | 117AH |
| 1 hour rate (92A) | 92AH |
| Capacity affected by Temperature | 40ºC(104ºF) | 103% | Standby | Charging current: <37.5A;
Charging voltage: 13.6V-13.8V at 25ºC
Temp. Coefficient: - 18mV/ºC |
| 25ºC(77ºF) | 100% |
| 0ºC(32ºF) | 86% |
| Internal Resistance | Fully charged battery (25ºC,) 2.5mΩ |
| Inverter | | | | | |
| DC input | Rated capacity (VA) | 3000 |
| Input rated voltage (VDC) | 110 |
| Input voltage recommended range(VDC) | 97-150 |
| AC output | Rated voltage (VAC) | 220/110 |
| Rated frequency(Hz) | 50/60 |
| Over load ability | 120% 1minute |
| voltage steady precision (VAC) | ±3% |
| Total hamornic distortion(THD) | ≤5% |
| Dynamic response(0~100%) | 0.05 |
| Invertion efficiency(80% load) | 0.85 |
| Environment | Insulation intension(VAC) | 1500, 1 minute |
| Noise(dB,1M) | ≤40 |
| Operating temperature (ºC) | -10~+50 |
| Storage temperature (ºC) | -20~+70 |
| Altitude (m) | ≤5000 |
| Controller | | | | | |
| Rated power | 2700 |
| Rated voltage(VDC) | 110 |
| Recommended controller charge MAX. current (A) | 24.55 |
| Number of charge loop | 3 |
| Rate charge current of each loop (A) | 8.18 |
| Recommended solar MAX. open voltage (V) | 250 |
| Over-charge(V) | protection | 130 |
| recover | 119 |
| Voltage descent(V) | Between solar cell and battery | ≤0.4 |
| Between battery and load | ≤0.03 |
| | | | | | | |
| Load reference: |
| Name of Load | Power(W) | | Quantity | Working Time per Day (H) | Working Days |
| |
| Color TV | 65W | | 2 | 6 | 3 days |
| Satellite TV Receivers | 25W | | 1 | 6 |
| LCD Computer | 100W | | 2 | 5 |
| Energy-saving lamp | 11W | | | 6 |
| Printer | 30W | | 1 | 2 |
| Electrograph | 150W | | 1 | 2 |
| Water Pump | 200W | | 1 | 3 |
| Refrigeratory | 100W | | 1 | 24 |
| Washing machine | 300W | | 1 | 1 |
| Rice cooker | 1000W | | 1 | 1 |
| Air-condition | 1200W | | 1 | 6 |
| Package data: |
| Part | Size (L*W*H) mm | | Weight(kg) | 20' (pcs) | 40' (pcs) |
| |
| Power box | 500*640*930 | | 65 | 10 | 26 |
| Solar panel | 1250*740*1440 | | 304 |
| Solar panel bracket | 2270*85*675 | | 169 |
| Battery | 985*540*870 | | 750 |
| Battery bracket | 2270*85*150 | | 65 |
