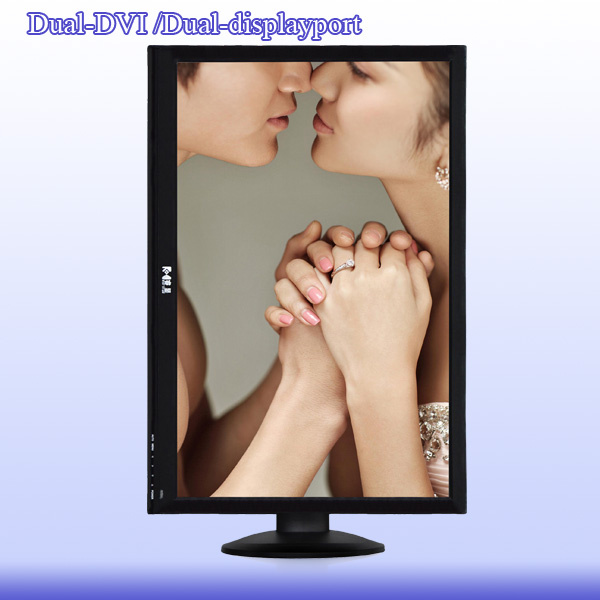

30 inch LCD monitor with VGA, DVI, HDMI and display port interferences
System requirement
Equipped with DVI-D, VGA, HDMI, NETBOOK
WINDOWS/NT/2000/XP/VISTA/7
Provide DVI-D or VGA or HDMI ports PC or NETBOOK
WINDOWS/NT/2000/XP/VISTA/7
RX display passed below design to reduce the impact of environment.
Not contain arsenic display glass
Not contain mercury
(BFR)Not contain bromination BFR
Not contain (PVC) 1
Highly recyclable aluminum and glass shell
Earn CCC
Display
30 inch (Visible picture diagonal size)
Thin film filed effect transistor (TFT)
Active matrix LCD, equipped with an in-plane swithching (IPS) technology.
Port of HDMI is supported
Limited warranty and serve
RXLCD 30 inch monitor has semi-annual toll free call support and one year warranty period.
RXLCD 30 inch monitor
AC power line
DVI-D (dual-link) +VGA wire
Power adapter
Pedestal and sustain parts
User's manual
|
Height |
44.3cm (17.5inch) |
|
Width |
68.5cm (27inch) |
|
Depth (with standard) |
5.4cm (2.1inch) |
|
Support resolution |
2560 x1600pixel,1920x1200pixel , 1280x800pixel |
|
Color (maximum) |
10.7million color |
|
Aspect ratio |
16:10 |
|
Visual angle |
178 °horizontal; 178°perpendicular |
|
Luminance (standard) |
Luminance (standard): 370cd/m 2 |
|
Contrast ratio (standard) |
1000:1 |
|
Response time |
8ms |
|
Speaker |
build-in |
|
Speaker system |
less than 2w
|
|
Input voltage |
100V to 240V AC; 50-60HZ |
|
Maximum power consumption |
120W (10 0% when the white screen brightness) |
|
Energy conservation made |
1.5W or under |
|
Operating environment |
10°C to 35°C (50°C to 95°F) |
|
Storage temperature |
-20°C to 47°C (-4°C to 116°F) |
|
Relative humidity |
20 % to 80% among non condensation state |
|
The highest use seal level elevation |
3,000m (10,000 feet) |
|
certification |
CCC |
Shenzhen JLD Display Expert Co., Ltd., founded in 2004, is a high-tech enterprise integrating R&D, technical support and marketing of high-end monitor.
JLD Display Expert is the biggest agent of Mstar in the Chinese Mainland. JLD has strong professional R&D team, quality monitoring system and rich design experience, and can provide design plan of full-size full-specification.
and we manufacture the professional monitors, like medical, printing and graphic, etc.
Monitor driver board. The design of each monitor driver board embodies high reliability and high cost performance. At present, 4.5% global monitor drivers are provided by JLD. Nearly one-hundred manufacturing enterprises in the world use our design plan and products. To choose our plan and products, you can enjoy: high reliability, high cost performance, excellent technical service and fast response time.
Since 2011, JLD Display Expert has been committing to R&D and production of high-end monitor. According to professionals' demands on graph and picture effect, JLD designed and produced "Ruixian" monitor, which can be applied to medical treatment, printing, plane design, design sketch making, cartoon design, photography, game player, etc. Our product concept is: "You Buy Famous Brand in Pursuit of Quality. With Noble Quality and Preferred Price, Our Products Are Famous Brand".
We specialized with LCD monitor, LCD TV and other computer products. We understand our customers, we care about the future of our business. We want to ensure that you get our good service, not only high quality and speedy delivery.
