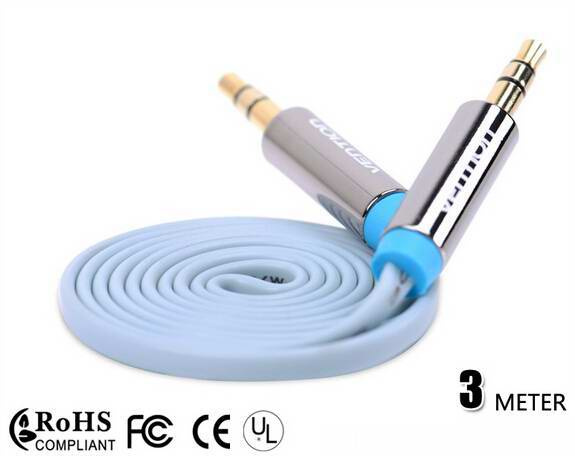

2014 newest high quality stereo audio cable aux cable 3.5mm flat cable with copper shell av
3.5 mm noodle style audio cable:
Brand new and high quality audio/video cable
3.5mm male to male stereo audio/video cable.
Can connect two devices with 3.5mm Stereo jacks, like Cell phones, Mobile Phones, Some MP3 players, etc.
Suitable for general audio applications.
Length: As customized
Easily connect a speaker system or microphone
Provides the solution needed to connect high performance systems
Connector: Gold-plated 3.5mm Male to male audio cable
3.5mm flat cable
1, 1*3.5mm to 1*3.5mm
2, Gold plated male connector
3, PVC molding style
4, RoHS Approval
Audio Cable, AV Cable, Audio Video Cable
1) 3.5mm stereo PLUG TO PLUG
2) Molding, Nickel plated connector
3) Conductor: BC, TC, or CCA, CCS
4) Premium Grade cable
5) RoHS Approval,
Packaging:
1) Polybag with customer label
2) Blister and card
3) Color box
4) OEM packaging
3.5mm Stereo Audio Cable specifically designed for quality audio applications.
Standard 3.5mm jack on both ends.
Gold/Nickel plated stereo plugs for higher quality transmission.
This cable is ROHS Compliant for the Highest Standards in Europe.
Connects different types of audio devices together including Sound Cards, MP3 and connections to multimedia speakers.
Connects your audio devices to your car stereo player(if it has 3.5mm aux-in)as an auxiliary input.
Usage: Audio & video signals
Certificate: UL, CE. RoHS
Export to: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
|
1 Wire Audio Cable: |
|
- Connectors: Single stereo plug (male) to stereo RCA plug (male). |
|
- Fully molding connectors provide excellent strain relief. |
|
- High-quality coaxial wire with copper braid shield reduces unwanted noise and distortion. |
|
- Nickel-plated sterei connectors give you solid corrosion-free contact. |
|
- Easy installation with non slip rubber grip. |
|
- Improves digital signal delivery as compared to standard stereo type audio cables. |
|
- True digital signal maintained by high quality materials and connectors. |
|
- 99.999% pure copper non-OFC conductor. |
|
- High-density double shielding for maximum rejection of EMI and RFI. |
|
- Capacitance: 22PF per foot. |
|
- CL2/CL3 In Wall Rated |
Electrical Specifications
|
1.100% open & short test; |
|
2.Hi-Pot: DC 300V 10ms; |
|
3.Insulation Resistance: 10M OHM /300V Min; |
|
4.Contact Resistance: 0.01 OHM Max; |
|
5.Shield upon 95% braid; |
|
6.Working Temperature: -25oC ~ +85oC. |
Mechanical:
|
Over mold: |
PVC 80Pa ,UL94V-0 Black or white; |
|
Pre mold: |
PE Low Density; |
|
Contact: |
Copper Alloy; |
|
Insertion Force: |
35 N Max; |
|
Withdraw Force: |
10 N Min. |
