Rongen Technology Co., Limited >> 3.5inch High Brightness TFT LCD Screen

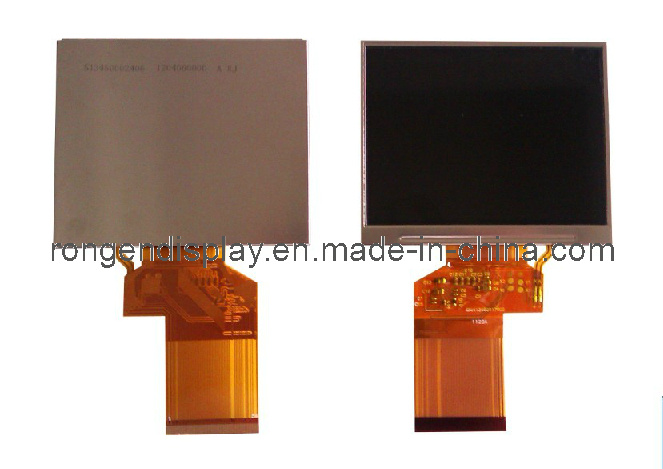

3.5inch High Brightness TFT LCD Screen

3.5inch High Brightness TFT LCD Screen
Price: US $ 10/Piece
Trade Terms: FOB
Min Order: 500/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: SP035GT-07
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Resolotion: 320X240
Luminance: 350CD/M2
Contrast Ratio: 500:1
Usage: Monitor LCM
Touch Screen Type: Capacitive
Type: LCM
Response Time: 25ms
Viewing Angle: TN+FILM
Display Technology: TFT
DOT-Matrix Graphic LCD Module Type: Row/Column-Driven Control Type
LCD Drive Mode: Static Drive LCD Module
Customized: Customized
Digital LCD Module Type: TFT LCD

Product Description

Brand: RONGEN
Spc: 3.5inch LCD screens 320(RGB)x240

Specification:
LCD Model: SP035GT-09
LCD Size: 3.5inches
LCD Resolution: 320(RGB)x240
Luminance: 350CD/m2
Size: 76.9x63.9x2.95mm
Active Area: 70.08x52.56mm
Contrast Ratio: 500: 1(Typ. )
Response time(ms): 25(yp. )(Tr+Td)
Viewing Angle: 60/60/40/60 (Typ. )(CR≥ 10)
Operation Temperature(° C): -20 ~ 70 ° C
Storage Temperature(° C): -30 ~ 80 ° C
Electrical Interface(data): Parallel RGB
RONGEN have concentrate on designing and manufacturing display products for more than 12 years.

Wecan offer monochrome TN/STN, CSTN, TFT and OLED displays and other display components.

Our transflective TFT displays are not only viewing but support operating under direct sunlight, if you are looking for sunlight readable TFT displays, our product is your best choice. And our IPS and LTPS panels are wide viewing angles, they are widely used in automotive electronics, military applications and medical instruments.

Further more, each unit bears SGS, TUV and RoHS marks.

The innovative flat panel display and products- provided by our elite team- can keep pace with such a fast-changing global marketplace. We can also meet your display specifications, and satisfy your individual request. The most competitive and satisfying products have won us high reputation.

Now RONGEN Display Co., Ltd is becoming a qualified supplier of many noted companies. Professional technical support and good service is our permanent commitment for you.
