Prod Model: |
F350 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
CPU: |
Mstar Msb2531, Arm Cortex-A7 |
Memory: |
128MB/Built-in MLC Flash, 8GB Flash |
LCD Display: |
3.5" TFT LCD Display |
Resolution: |
480RGB(H)X272(V) |
Touch-Screen: |
High-Accuracy, Endurable Touch-Screen |
USB: |
USB Client 2.0, Mini USB Port |
TF: |
TF Slot, Support TF Card up to 8GB |
Battery Charging Port: |
DC 5V Port |
AC Charger: |
100/230V Charger, 5V/1.5A |
Navigation Software: |
SD Card |
Type: |
GPS Navigator |
Use: |
Automotive |
Screen Size: |
3.5" |
Model: |
Gd-4031 |
Product Description

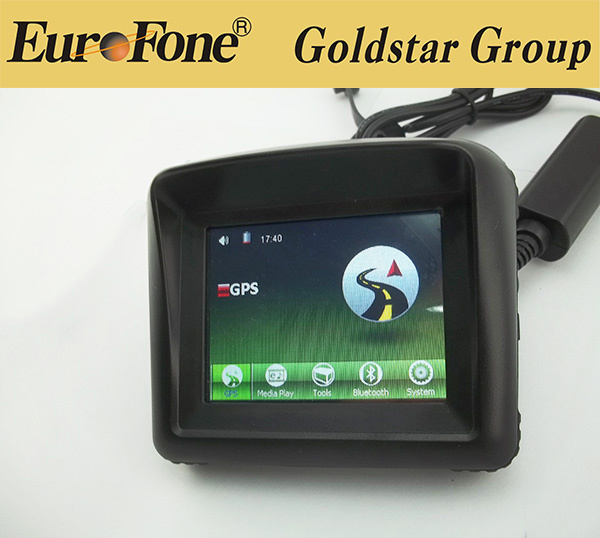

3.5 Inch Motorcycle GPS Navigation System
Basic info of GPS Navigation:
Model No | F350 | Buttons / Switches | Power On/Off, Reset |
Material | Plastic | Battery | Non-removable rechargeable Li-Polymer battery, 1900mAh |
Waterproof | IP54 | Car charger | DC5V 1.5A |
Warranty | 13 Month | Certifiction | CE/RoHs/FCC |
Specification of navigation:
CPU SAMSUNG S3C2416 processor400/533MHz
Screen Display 3.5 inch touch panel, TFT screen, 65536 colors
Resolution 320*240
Memory Flash ROM NAND Flash support 64MB to 8GB
RAM 64M/128M DDR2 SDRAM
GPS Module High Sensitivity Receiver (NXP GNS7560)
Antenna Real built-in antenna (built-in GPS high sensitivity receiver42 channel)
BlueTooth Built in
Audio WMA,WAV
Video AVI, ASF
Photo JPG,TIFF,PNG
Input/Output Touch Panel Resistive type touch panel
Speaker Built-in loud speaker
SD / MMC TF slot, capacity up to 8GB (support TF HC)
USB USB 2.0 Device (Mini Port)
Waterproof YES (IP54)
UUT Drop Test (OK) Place a 3mm thickness fireproofing wood block,Power on the UUT,then drop it
m 80cm height freenessly by front,side and bottom face .NO function problem
Buttons / Switches Hardware Power ON/OFF Switch and Reset Switch
Battery Type Built-in 3.7V 1150mAh Li battery
Active System continues with backlight setting on middle range & GPS function
on full power mode about 3.0(TBD) hr
Charger Rechargeable battery
Car Charger Output 5V, 1.0A
Certification & Regulation CE,FCC, RoHS
Temperature Operation -10°C to +50°C
Storage -20°C to +70°C
Humidity Operation 45~80%, Non-Condensed
Storage 30~90%, Non-Condensed
Hot start<=5sec (in open place,-130dBm)
Warm start<=38sec (in open place,-130dBm)
Cold start<=45sec (in open place,-130dBm)
Satellite reacquisition time accuracy:100ms
Position accuracy: <5M ( outdoor , -135dBm )
Crystal-Clear 3-D and 2-D Graphics
Physical Dimension: 105X88.7X23mm
Weight: 190g
Key Software
Operating System Microsoft Windows® CE NET5.0 Core version
Package of navigation details:
3.5"Unit * 1pc
Mini USB cable * 1pc
Stylus * 1pc
Device Holder * 1pc
Cradle: * 1pc
Nuts*8pc
Power cable *1pc
Gift box * 1pc
Giftbox 190x130x152mm
Carton 630x355x305mm (10PCS)
