KEY FEATURES:
> Adopt SMT technology
> One -year warranty .it is design provides economical access to the premium sound quality and reliability.
APPLICATIONS:
It is middle class amplifier designed for Professional wide-bandwidth output devices and low-end response make for installations
and touring applications that demand the best audio quality. It aims at real professional sound market, with good quality-price ratio.
Inside crossover,by pass for full range, low-pass for pure super bass while you need, and hi-pass for pure satellite.
It is a good choice for the project which has a tight budget.can be used for large performance, big disco, nightclub, stadium, cinema
Now it has enjoyed good market all over the world, especially in USA, European & Asia, such as Germany, France, Belgium,Spain .
. Professional performance, mid stadium, opera house, disco etc.
. Outdoor applications and Theater places expand sound systems.
. The night club,KTV. shake slow bar etc. sound reinforcement systems.
. Professional Audio & video presentations sound systems.
. Fixed Installations system and Live sound reinforcement.
1. Selling to over 60 countries and regions
2. High performance with competitive price
3. Amplifier, active line array speaker, customized speaker is our strong points.
Amplifier product:
Hot sell product:
Are you looking for perfect sound system for your events venue?
Do you want to cut purchase cost?
Are you looking for reliable partner?
Contact ACLON now! Call me!
ACLON with you hand in hand, together, we will be stronger
| TITLE | Specification |
| Product Model: | SDA400 | SDA600 | SDA800 | SDA1000 | SDA1200 |
| Rack mounting (high) | aluminum panel | 2U | 2U | 2U | 2U | 2U |
| Rated Power | 8ohm stereo | 2x400 W | 2x600W | 2x800W | 2x1000W | 2x1200W |
| (1KHz, THD+N=0.1%) | 4ohm stereo | 2x600 W | 2x900 W | 2x1200 W | 2x1500 W | 2x1800 W |
| 2ohm stereo | 2x800 W | 2x1200 W | 2x1500 W | 2x1900 W | 2x2200 W |
| Mono Bridge | 8ohm bridge | 1200 W | 1800 W | 2400 W | 3000W | 3600W |
| 4ohm bridge | 1500W | 2400W | 3000W | 3800 W | 4500 W |
| Protection | DC protect. Current inrush protect, turn-on/off transient, Short circuit protect, High temperature protect |
| Protection | Soft startup protect, Input over load protect (Limiter). Output over load protect. ultrasonic input. ACL. IGM. |
| Crossover | By Pass | 20 Hz-22 KHz (-3 dB) |
| High/Low Pass | High Pass: 50 Hz-22 KHz, Low Pass: 20 Hz-120 Hz |
Guangzhou ACLON PRO Audio Co., Ltd. working many years have rich experience and ability for OEM /ODM. Offering over 50 various kinds of professional audio products and monthly output up to 6 thousands pieces. We are the best manufacturer that you can trust in China.

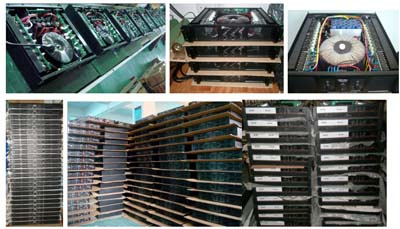

We have power amplifier and loudspeaker production workshop. OEM and sell ACLON brand is our main business. We are as professional audio factory. We can best control product quality and cost.
ACLON factory offer you not only a varied range of quality amplifier and loudspeaker products but also offer you technical assistance, all at very competitive prices.
Distributors welcome for ACLON products and any OEM/ODM order is welcome.
