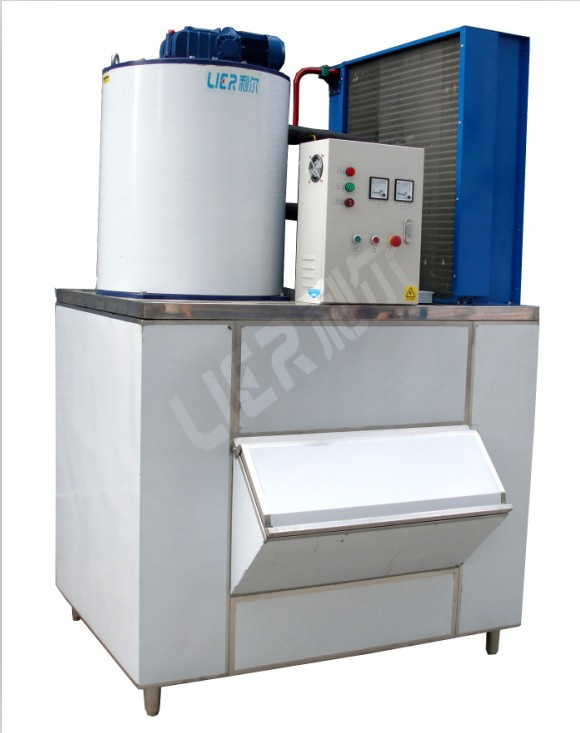

2ton Per Day Ice Maker for Food Processing

Prod Model:	LR-2T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Compressor:	Copeland, Bitzer
Capacity:	2000kg/24h
Refrigerant:	R404A/R22
Power Supply:	380V/50Hz/3p
Ice Thickness:	1.8-2.5mm
Ice Shape:	Flake Ice
Certification:	SGS
Condition:	New

Product Description

2ton Per Day Ice Maker for Food Processing
Basic features of flake ice machine/maker/plant:
A. Superb Stability and reliability, long use life.
B. User-friendly design, intellectualized PLC touch-screen controller
The intellectualized PLC touchscreen control system, user-friendly designed, which is very convenient for operator. The intellectualized historical failure record-function and guidance of trouble-shooting makes easier and simple operation and maintenance.
C. Sub-cooled ice, excellent fast cooling in few minutes
D. Low maintenance and operation cost
Super performance offers trouble-free operation, with much less maintenance probability than other brands of ice flakers.
E. Energy-efficient and cost saving

Main functions of Flake Ice:
Low temp. (-8C) Dry and sanitary
Large contact area Good mobility
Always used in the field of aquatic food & meat product processing, leather processing, fowl butchering, dye chemical industry, supermarket or seafood restaurant or mines...Etc for its clean ice and convenience as well as low cost to keep food fresh. The flake ice machine is warmly welcomed for its clean, shapeliness, whiteness, glittering and translucent as well as low temperature to firstly keep fresh such as fish, meat and chicken then show a good view to the visitor and customers.

Applications
Supermarkets
Meat processing
Aquatic food processing
Fowl slaughtering
Leather industry
Dye chemical industry
Temp. Reduction of Mine
Bio-pharmacy
Laboratories
Medical facilitie
Deep-sea fishing
Concrete construction project


Product details:
TOP-Quality Ice Making Evaporator (Drum)
*UNIQUE Strict quality control system (ERP SYSTEM controlled)
*Delicate welding technics with X-RAY. / Never leak
*SS 304 (stainless steel) Ice making drum (generator)
*All the material meet the HACCP request.
*Stainless steel cutters.
*Energy-efficient & high-sufficiency for ice production
----With the unique water distribution pan and air mouth, pure water evenly flows to the tube wall of the evaporator spirally, which improves the efficiency of heat transfer.
----As soon as ice off, the water of low temp. Is using for ice-making, which saving energy & increasing the drum volume of production of ice
----Air pressure control excludes the risk of rupture of the evaporator drum...

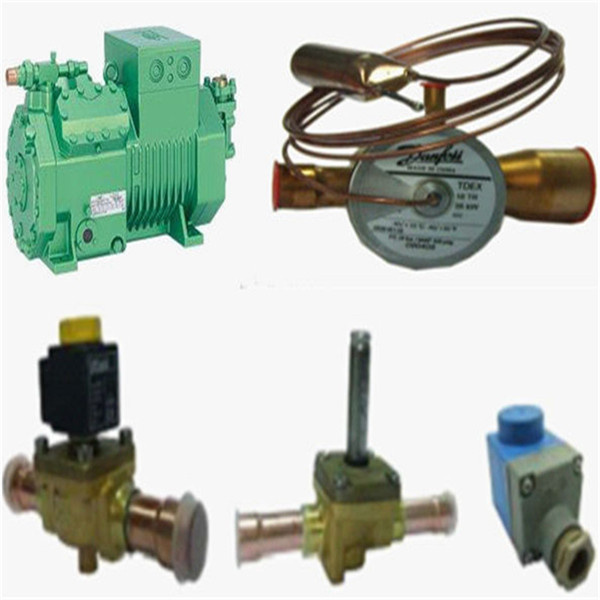

Copeland Refrigeration System
*Superb Stability and reliability, long use life.
*Energy-efficient
----Refrigeration can be used many times due to the tight, high quality refrigeration system

PATENTED H-M Control System
Unique Vivid H-M Interactive control system
Give user access to the automatic electrical system which performs sequences for freezing and thawing precisely and dependably then makes great convenience to the customer to operate the machine and settle the trouble.
1. All the running status playing live in touch-screen, convenient as your FAMILY air-conditioning.
2. Perfect failure & trouble-shooting querying system with red warning signal flicker if any failure occurred.
3. Stop-time could be set at your will.
4. The thickness of the flake ice could be adjustable with setting the icing time.

Flake  ice  evaporator  technical  parameter
Model	Ice  output (kg/24h)	Cooling  capacity (KW)	Power	Total  Power (KW)	Regrigerants	Cooling  Way	Single  Barrel  Dimension(mm)	Net  Weight (kg)	Capacity  of   Freezer
LR-05T	500	3.7	3P/38OV/50Hz	2.5	R404A	Air-cooled	1310*890*780	195	400
LR-1T	1000	6.5	3P/38OV/50Hz	4.8	R404A	Air-cooled	1310*970*880	227	500
LR-1.2T	1200	7.8	3P/38OV/50Hz	5.47	R404A	Air-cooled	1310*970*980	263	500
LR-1.5T	1500	9.8	3P/38OV/50Hz	7.3	R404A	Air-cooled	1310*970*980	364	500
LR-2T	2000	13	3P/38OV/50Hz	8.5	R404A	Air-cooled	1500*1095*1040	423	600
LR-2.5T	2500	16.2	3P/38OV/50Hz	9.2	R404A	Air-cooled	1500*1095*1200	456	600
LR-3T	3000	19.5	3P/38OV/50Hz	12.2	R404A	Air-cooled	1750*1190*1200	530	Actual  demand  of  cumtomer
LR-4T	4000	26	3P/38OV/50Hz	16.3	R404A	Water-cooling	1700*1650*1450	630
LR-5T	5000	32.5	3P/38OV/50Hz	19.6	R404A	Water-cooling	1700*1650*1450	760
LR-8T	8000	49	3P/38OV/50Hz	26.6	R22	Water-cooling	2500*2000*1560	968
LR-10T	10000	65	3P/38OV/50Hz	32.5	R22	Water-cooling	2500*2000*1700	1260
LR-15T	15000	95	3P/38OV/50Hz	58	R22	Water-cooling	3100*2160*1865	2120
LR-20T	20000	130	3P/38OV/50Hz	63	R22	Water-cooling	3100*2160*2050	2860
LR-25T	25000	160	3P/38OV/50Hz	75	R22	Water-cooling	3100*2160*2265	2940
LR-30T	30000	195	3P/38OV/50Hz	86	R22	Water-cooling	3500*2700*2350	3240
