SPEC.
subwoofer amplifier
| input | RCA Jack/Binding post |
| input impedance | RCA 22k Ohm Unbalanced |
| input impedance | Binding post 390 Ohm Unbalanced |
| controls |
|

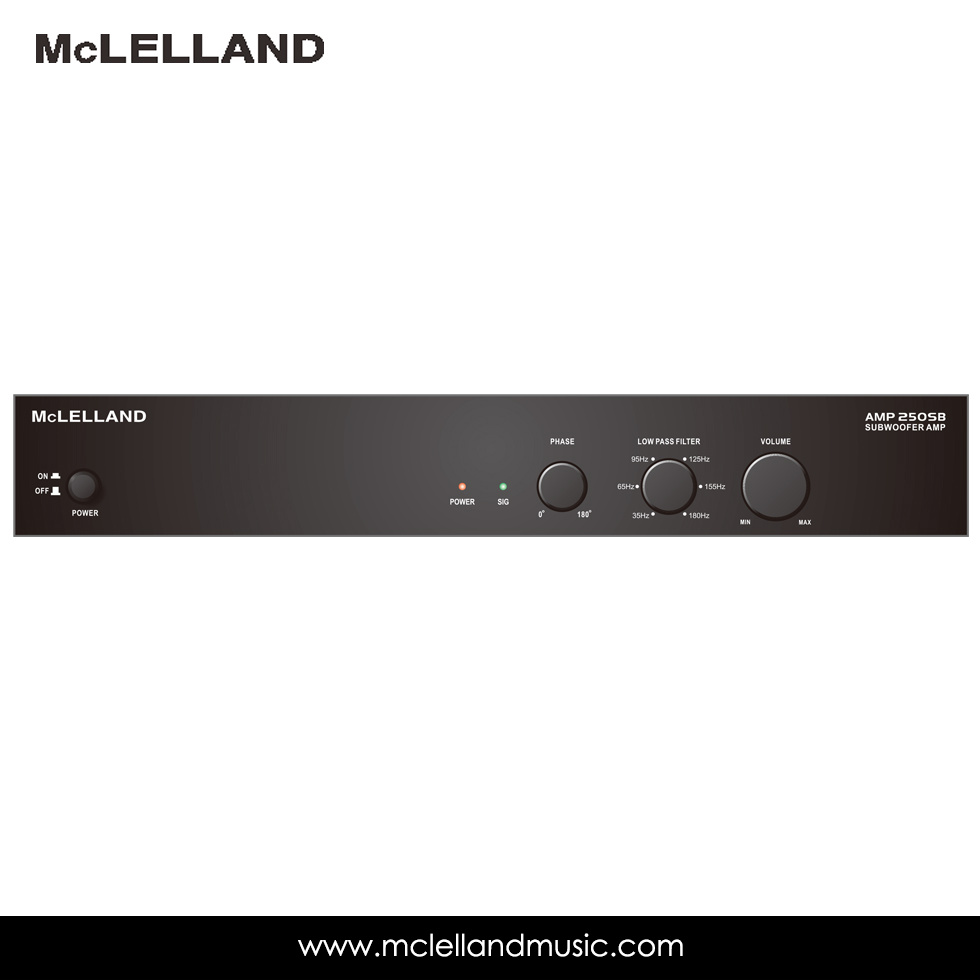

| FRONT |
|
| PHASE | 0-180° |
| LOW PASS FILTER | 35Hz-180Hz |
| VOLUME |
|
| POWER ON/OFF |
|
| POWER indicator light | red |
| Signal indicator light | gree |
| REAR |
|
| Speaker in | 10V |
| Speaker out |
|
| Line in Sensitivity | 700mA |
| Line out |
|
| LEF IN/LEVEL Sensitivity | 1.0V |
| TRLGGER | 12V-IN/OUT |
| TRLGGER TYPE | MUSIC/ON/12V |
SUBWOOFER SPEAKER OUT : >180W /8 Ohm music power
150w 10%/8 Ohm RMS
frequency responce :35Hz-180Hz+/-3dB
signal to noise ratio :>90dB
AC VOLTAGE SELECTOR :115/230V
ACIN : socket
Amplification Fusing :T3 ,15A/115V T1.5A/230V
POWER Consumption : Max:250w
Dimensions(HxWxD) : 16.5'W*7.87'D*2.85'H
Weight : 4.5kg
