| Prod Model: |
TFT059A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD Type: |
TFT |
| Controller: |
Ili6122+Ili5960 |
| Interface: |
24bit RGB |
| Backlight: |
12LED White |
| Resoluton: |
800*480(WVGA) |
| Outline Size: |
120.7*75.8*3.1mm |
| Operating Temperature: |
-20~70 Degree |
| Screen Size: |
≤17" |
| Application: |
Graphic Design |
| Aspect Ratio: |
16:9 |
| Feature: |
Touch Display |
| Type: |
TFT |
| Widescreen: |
Widescreen |
| Response Time: |
5ms |
| 3D: |
Not 3D |
| Interface Type: |
RGB VGA HDMI |
| Optimum Resolution: |
480X272 |
Product Description

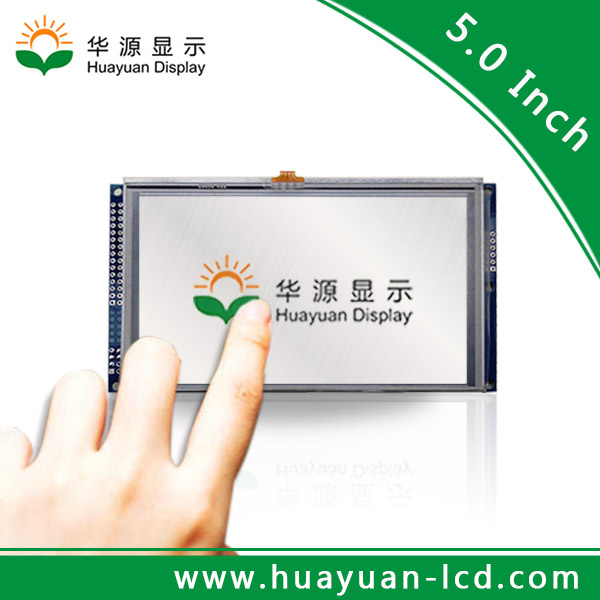

24bit VGA interface TFT LCD display for MCU
Gerneral Specification Model Number:TFT199A
1 LCD size 5.0 inch(Diagonal)
2 Driver element a-Si TFT active matrix
3 Resolution 480 × RGB × 272
4 Display mode Normally White, Transmissive
5 Dot pitch 0.077(W) × 0.231(H) mm
6 Active area 110.88(W) × 62.832(H) mm
7 Module size 120.70(W) × 75.80(H) × 3.9(D) mm
8 Surface treatment Anti-Glare
9 Color arrangement RGB-stripe
10 Interface Digital
11 Backlight Power consumption 0.792 W(Typ.)
12 Panel Power consumption 63 mW(Typ.)
13 Weight 83g (Typ.)
Touch Panel: with or without touch panel

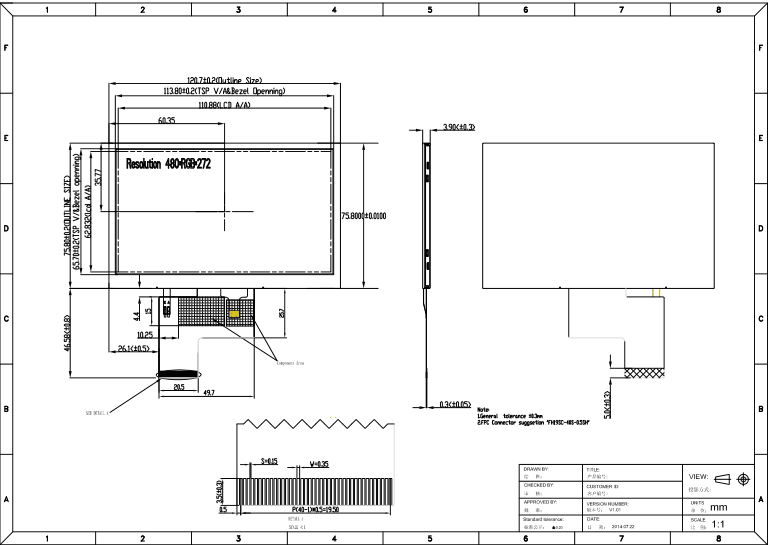

Mechanical Drawing

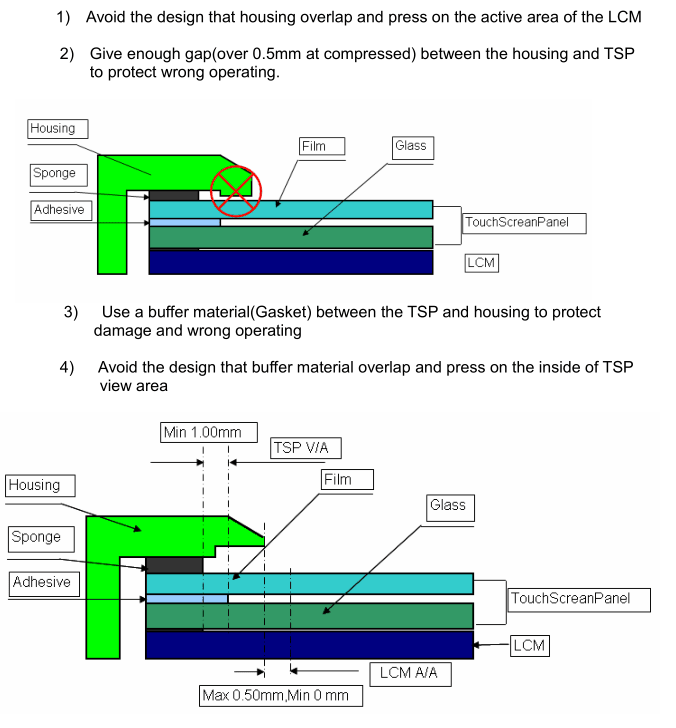

Housing design follow as below
1. The LCD panel is plate glass. Do not subject the panel to mechanical shock or to
excessive force on its surface.
2. The polarizer attached to the display is easily damaged. Please handle it
carefully to avoid scratch or other damages.
3. To avoid contamination on the display surface, do not touch the module surface
with bare hands.
4. Keep a space so that the LCD panels do not touch other components.
5. Put cover board such as acrylic board on the surface of LCD panel to protect
panel from damages.
6. Transparent electrodes may be disconnected if you use the LCD panel under
environmental conditions where the condensation of dew occurs.
7. Do not leave module in direct sunlight to avoid malfunction of the ICs.
