Product description

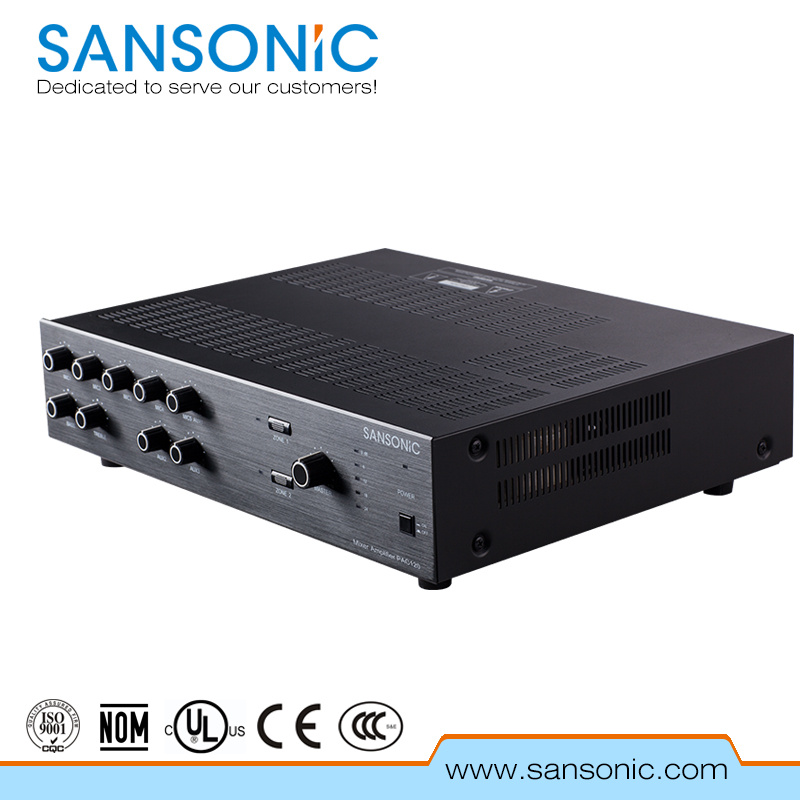

PAC240 is the high performance audio amplifier which are designed for commercial and industrial public address applications. This type is the standard mount design, rated power is 240W to provide a wide selection for different sound system. Both balanced and unbalanced line inputs are selectable, 4~16Ωand 100V are selectable for different speaker installation matching. Less than 1% at 1kHz,Complete protection includes short circuit, overload and overheat automatic protection.
Features
1. standard mount design, humanistic design, exquisite technique, show the top grade quality
2. MIC 1~5 canon port balanced input
3. AUX1 canon port balanced input, AUSX2-3 line RCA liner input
4. The panel with volume adjustment knob
5. 4~16Ω,100V output terminal multi-impedance output
6. Pre RCA output
7. Line 1/2 liner and Zone 2 liner output
8. Signal lamp, peak lamp display
9. On/off impact protection speaker
Application and management
Applied in airport, station, coffee shop, market, square, school, park, district and other places.
Specification
Model
PAC240
Power requirement
110-125V AC or 220V-230V AC,50/60Hz
Rated power
240W
Distortion
Less than 1% at 1 kHz
Frequency Response
50~20,000Hz(±3dB)
Outputs
Recording Output
0dB, 600Ω Unbalanced, RCA pin jack
Liner Outputs1,2
0dB, 600Ω Unbalanced, RCA pin jack
Speaker Output
High Impedance:70V\25V screw terminal
Low Impedance: 8ohmscrew terminal
Inputs
MIC 1-5:
60dB, 600Ω electronically-balanced, combine type of XLR-3-31 equivalent and phone jack
AUX 1:
-20dB, 600Ω electronically-balanced, combine type of XLR-3-31 equivalent and phone jack
AUX2-3
-20dB, 10k ohm unbalanced RCA pin jack
Operating Temperature
-10 to +40
Color
black
Dimensions(W*H*D):
420mm x 109mm x 357mm
Weight
13.5kg
