| Prod Model: |
FIB block ice making machine |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Compressor: |
Bitzer/Bock/Copeland |
| Gas: |
R22/R404A |
| Condenser: |
Air Cooled/Water Cooled |
| Quality: |
High Quality Block Ice Making Machine |
| Ice Shape: |
Ice Block |
| Certification: |
CE |
| Condition: |
New |
Product Description
Company Information
Focusun headquarter is located in Shanghai city, production and R&D team is located in Taizhou city, Jiangsu province, with more than 35,000 square meters of standardized modern plant. Our main products include all kinds of ice maker, cold storage, vacuum cooler, snow making machine, mine cooling system, etc.
There must be one product suits your business! Professional sales teams combined with excellent working experience production. Bring products from factory directly to you, cost of different marketing channels saving.
Focusun 3 types block ice making machine
1. Direct refrigeration system (milky color ice);
2. Indirect--brine refrigeration system (milky color ice or transparent ice);
3. 20ft/40ft containerized movable system;
Block ice weight/size:
Weight(kg/block) | Dimension(L*W*H mm) | Ice Making Time(hour) | Batch(times) |
| 10 | 155×100×750 | 5.5 | 4 |
| 20 | 245×125×750 | 7.5 | 3 |
| 25 | 315×125×750 | 7.5 | 3 |
| 50 | 480×160×750 | 11.5 | 2 |
| 75 | 420×200×1000 | 19.5 | 1 |
| 100 | 500×220×1000 | 22.5 | 1 |

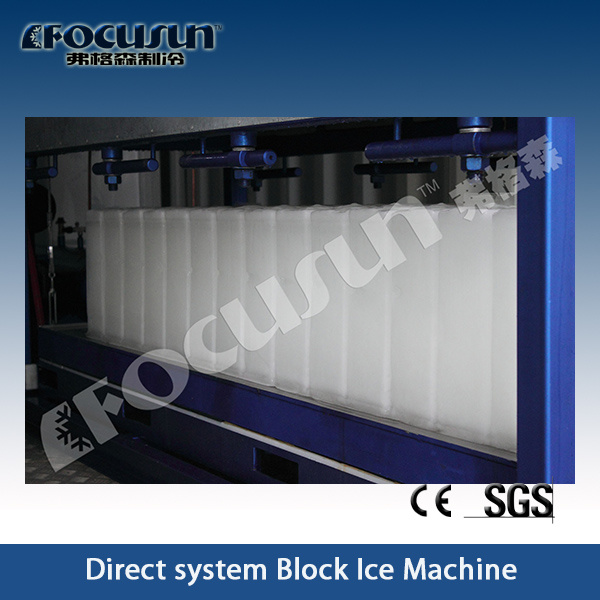

Direct refrigeration block ice making machine features:
1. The evaporator adopts special aluminum alloy plate which is more durable and meets food hygiene requirements.
2. Fully automatic, no manual work is needed, one work is enough to take care of the machine.
3. The ice is doffed by batch and the whole ice-doffing process only takes 25 minutes.
4. The whole batch of ice blocks can be moved by forklift. Quick and convenient.
No brine tank!
No hoist!
No ice thawing tank!
Space-saving!
Labor-saving!
Our direct refrigeration block ice making machine models:
| Model | Daily
Capacity | Refrigerant | Electricity
consumption | Install
power | Operating
weight | Size (L×W×H) |
| FIB-05D | 0.5T | R404A | 2.055kw | 2.5kw | 560kg | 1500×800×1800mm |
| FIB-10D | 1T | R404A | 4.85kw | 6kw | 960kg | 1800×1200×2000mm |
| FIB-15D | 1.5T | R404A | 6.94kw | 8.5kw | 1260kg | 2800×1200×2000mm |
| FIB-20D | 2T | R404A | 8.16kw | 10kw | 1460kg | 2800×1400×2000mm |
| FIB-25D | 2.5T | R404A | 9.51kw | 12kw | 1660kg | 3200×1400×2000mm |
| FIB-30D | 3T | R22/R404A | 11.52kw | 14kw | 2180kg | 3600×1400×2200mm |
| FIB-35D | 3.5T | R22/R404A | 14.85kw | 18kw | 2100kg | 3600×1650×2000mm |
| FIB-50D | 5T | R22/R404A | 20.9kw | 25kw | (unit):960kg | L1400×W1000×H1250mm |
| (evaporator):2860kg | L4800×W1000×H2250mm |
| (cooling tower):460kg | 1380×H2170mm |
| FIB-100D | 10T | R22/R404A | 33.98kw | 50kw | (unit):1680kg | L1800×W1000×H1450mm |
| (evaporator):2860kg×2(p.c.) | L4800×W1000×H2250mm |
| (cooling tower):670 | 2000×H2410mm |
| FIB-150D | 15T | R22/R404A | 59.15kw | 75kw | (unit):2160 | L2000×W1200×H1600mm |
| (evaporator):2860×3 | L4800×W1000×H2250mm |
| (cooling tower):1120 | 2175×H2565mm |
| FIB-200D | 20T | R22/R404A | 85.55kw | 105kw | (unit):2896 | L2400×W1600×H1800mm |
| (evaporator):2860×4(p.c.) | L4800×W1000×H2250mm |
| (cooling tower):1300 | 2650×H2645mm |
| FIB-250D | 25T | R22/R404A | 94.05kw | 120kw | (unit):3260 | L3200×W1800×H2200mm |
| (evaporator):2860×5(p.c.) | L4800×W1000×H2250mm |
| (cooling tower):1630 | 3050×H2780mm |
| FIB-300D | 30T | R22/R404A | 113.55kw | 150kw | (unit):3500 | L3000×W2000×H2200mm |
| (evaporator):2860×6(p.c.) | L4800×W1000×H2250mm |
| (cooling tower):2730 | 3300×H2785mm |
Brine refrigeration block ice making machine features:
1. Ti pipe is used as evaporative coil to improve heat transfer effect and prevent rust, corrosion for longer life.
2. The part inside brine tank that touches brine water is made of PE/SS304 which bears low temperature and highly resists rusts.
3. Particular can dump and thawing tank design makes easier operation.
4. Thaw tank is heated by air discharge from compressor to save much energy and suits for low water temperature area.
5. Every brine block ice machine can be designed and built as per your specific requirements.
Our brine refrigeration block ice making maker models:
| Model | Daily
Capacity | Refrigerant | Electricity
consumption | Install
power | Operating
weight | Size (L×W×H) |
| FIB-50B | 5T | R22/R404A | 20.9kw | 25kw | (unit):960kg | L1400×W1000×H1250mm |
| (evaporator):2860kg | L4800×W1000×H2250mm |
| (cooling tower):460kg | 1380×H2170mm |
| FIB-100B | 10T | R22/R404A | 33.98kw | 50kw | (unit):1680kg | L1800×W1000×H1450mm |
| (evaporator):2860kg×2(p.c.) | L4800×W1000×H2250mm |
| (cooling tower):670 | 2000×H2410mm |
| FIB-150B | 15T | R22/R404A | 59.15kw | 75kw | (unit):2160 | L2000×W1200×H1600mm |
| (evaporator):2860×3 | L4800×W1000×H2250mm |
| (cooling tower):1120 | 2175×H2565mm |
| FIB-200B | 20T | R22/R404A | 85.55kw | 105kw | (unit):2896 | L2400×W1600×H1800mm |
| (evaporator):2860×4(p.c.) | L4800×W1000×H2250mm |
| (cooling tower):1300 | 2650×H2645mm |
| FIB-250B | 25T | R22/R404A | 94.05kw | 120kw | (unit):3260 | L3200×W1800×H2200mm |
| (evaporator):2860×5(p.c.) | L4800×W1000×H2250mm |
| (cooling tower):1630 | 3050×H2780mm |
| FIB-300B | 30T | R22/R404A | 113.55kw | 150kw | (unit):3500 | L3000×W2000×H2200mm |
| (evaporator):2860×6(p.c.) | L4800×W1000×H2250mm |
| (cooling tower):2730 | 3300×H2785mm |
Containerized system block ice making machine:
Why containerized?
If you don't have a workshop but want to start your ice making business, you can consider our containerized block ice making machine, a mobile plant that can make ice.
Features:
1. Convenient transportation and installation, no need to build a room for the container and machine.
2. Self-contained condensing unit is pre-piped and wired.
3. New ISO container equipped with lighting and drainage system.
4. Economically saving on cost and operation, advanced free maintenance design requires no specially trained engineer.
Both brine system and direct system can be installed in the 20 or 40 feet container.
Max capacity of direct system in 20'GP models: 6Ton/day
Max capacity of direct system in 40'HQ models: 18Ton/day
| Model | Daily
Capacity | Refrigerant | Electricity
Consumption | Operating
Weight | Size |
| 20foot container | FIB-10BC | 1T | R22/R404A | 6.0kw | 960kg | 6058×2438×2591mm |
| FIB-30BC | 3T | R22/R404A | 14.0kw | 2180kg | 6058×2438×2591mm |
| FIB-50BC | 5T | R22/R404A | 20.9kw | 3820kg | 6058×2438×2591mm |
| 40 foot container | FIB-80BC | 8T | R22/R404A | 30.79kw | 5600kg | 12192×2438×2895mm |
| FIB-100BC | 10T | R22/R404A | 33.98kw | 7400kg | 12192×2438×2895mm |
Your demand:
Tell us your needs (as specific as possible), like wanted daily capacity, ice usage, ice weight/size in local market or desired ice making time, suitable suggestions provided or can be also specially customized.
PS: Standard ice maker is designed on 33ºC dry ball temp. and 25ºC water temp. (If temp. different, please inform us when enquiry, can be customized. If your local temp. very very high, above 45ºC, don't worry, just let us know, we'll provide you right solution);
