1. Solar Powered Air Conditioner, energy saving 30-50%, solar heat energy reduce the burden of compressor, means we use a smaller compressor to achieve the same cooling capacity. This is the first reason why it saves energy.
2. high efficiency heat exchange system is another reason why saves energy.
3. world famous brand compressors, high reliability and long lives
4. Digital LED display
5. Multi-fold heat exchanger, high-quality internal thread copper pipe and hydrophilic aluminum foil make the cooling capacity stronger
6. anti dust air filter makes air fresher
7. Digital e-Touch, convenient and electricity-saving, easier operation for elder people and kids.
8. Fluorescent button, visible at night

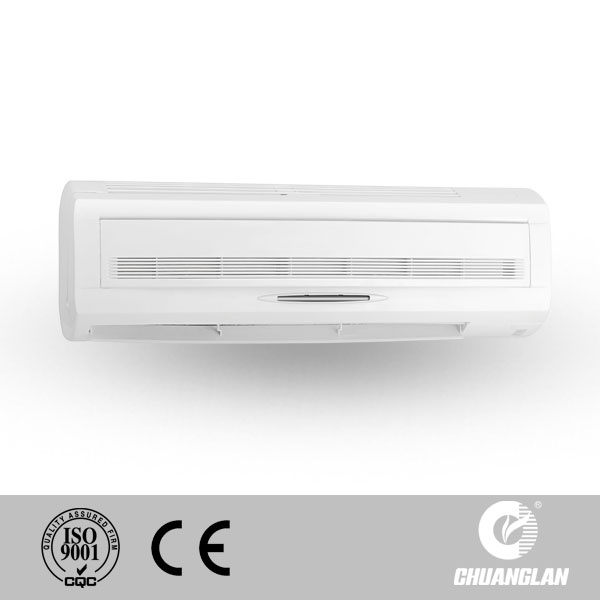

Wall Mounted Type Hybrid Solar Air Conditioner |
| | | | | | |
Model No. | TKF(R)-26GW | TKF(R)-35GW | TKF(R)-60GW | TKF(R)-72GW |
Power Supply:220-240VAC, 1PH, 50Hz |
Performance |
Capacity | Cooling | Btu/h | 9000 | 12000 | 20000 | 24000 |
W | 2600 | 3500 | 6000 | 7200 |
Heating | Btu/h | 10000 | 13000 | 22000 | 27000 |
W | 2900 | 3800 | 6600 | 7900 |
Noise | Indoor | dB(A) | ≤40 | ≤42 | ≤46 | ≤50 |
Outdoor | dB(A) | ≤50 | ≤52 | ≤56 | ≤58 |
Air Circulation | m³/h | 450 | 550 | 850 | 1050 |
Suitable Area | m² | 11~17 | 15~23 | 25~42 | 30~48 |
EER | W/W | 3.64 | 3.89 | 3.88 | 3.82 |
Btu/h/w | 12.42 | 13.27 | 13.24 | 13.03 |
Power Consumption |
Power Input | Cooling | W | 650~770 | 800~1025 | 1350~1560 | 1700~1900 |
Heating | W | 650~780+350 | 800~1050+350 | 1350~1590+350 | 1700~1950+350 |
Rated Current | Cooling | A | 2.95~3.50 | 3.64~4.66 | 6.14~7.09 | 7.73~8.64 |
Heating | A | 2.95~3.55+1.6 | 3.64~4.77+1.6 | 6.14~7.23+1.6 | 7.73~8.66+1.6 |
Vacuum Tube | Diameter*Length*Pcs | 47mm*500mm*9 | 47mm*500mm*10 | 47mm*620mm*11 | 47mm*620mm*11 |
Dimensions |
Indoor Unit | Net | mm | 785*285*210 | 785*285*210 | 985*320*215 | 985*325*230 |
Shipping | mm | 910*370*300 | 910*370*300 | 1080*380*300 | 1160*400*330 |
Outdoor Unit | Net | mm | 790*260*540 | 790*260*540 | 850*300*755 | 940*300*755 |
Shipping | mm | 910*370*610 | 910*370*610 | 950*410*760 | 990*400*770 |
Water Tank | Shipping | mm | 910*400*330 | 910*400*330 | 980*400*370 | 980*400*370 |
Vacuum Tube | Shipping | mm |
Weight |
Indoor Unit | Net/Gross | kg | 10/11 | 10.5/13 | 17/18.5 | 21/23 |
Outdoor Unit | Net/Gross | kg | 31/34 | 38/40 | 50/52 | 55/58 |
Solar Collector | Net/Gross | kg | 13/15 | 13/15 | 16/17 | 16/17 |
Loading Qty | in 20feet | sets | 66 | 66 | 49 | 46 |
40HQ | sets | 162 | 162 | 120 | 112 |
Solar assisted all day
Toshiba or Mitsubishi compressor
High efficiency heat exchange system
All copper pipe
2-3years running will save a air conditioner cost.
Founded | August,2006 |
Main Products | Hybrid Solar A/C, Air Purifier, Dehumidifier |
Staff | 100 |
Products Line | 3 |
Products Capacity | 500 Thousand /year |
R& D | 10 person |
Quality Staff | 10 person |
Patent (2012 year) | 50 Patents(10 International Patent,3 Invention patent) |
Factory Area | 22 Thousand M2 |

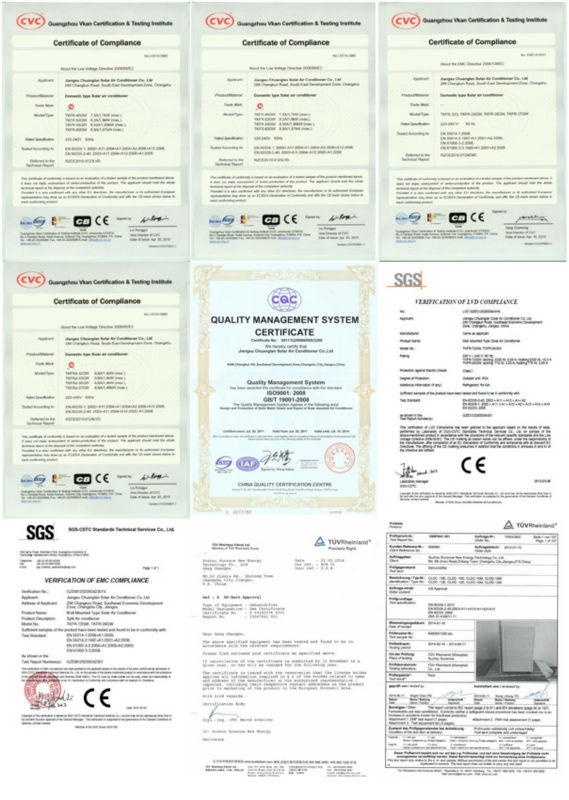

Certificates

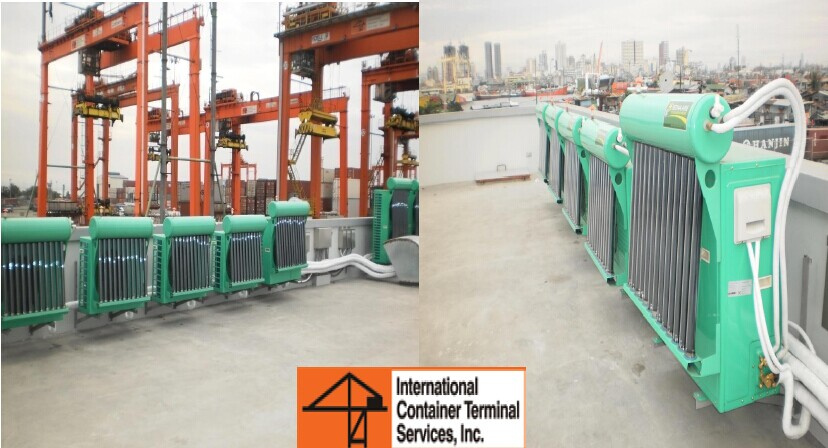

Installation case
warranty: 1year+1% spare parts
several professional engineers will serve for you if any question.
Jiangsu Chuanglan Solar Air Conditioner Co., Ltd. Established in Aug. 2006 with a registration capital of 2.99million US dollars, is a company focusing on solar energy exploitation and utilization. It is a professional enterprise with R&D team, production line and sales team on environmental friendly products, energy saving products and air purifying products with the support of its engineers, advanced production equipment and laboratory. It's an outstanding manufacturer in the world with high technology, big production capacity, wild product range and strong competitiveness on domestic solar assisted air conditioners, commercial solar assisted air conditioners, atmospheric water generators, air purifiers and dehumidifiers.
Chuanglan includes one head office and one subsidiary company Suzhou Sunsnow. Its head office locates in New Technology Industrial Development Zone of Chuangshu City, where is with full access to development opportunities. It has more than 80 patents at home and abroad, total access is over 12.9million US dollars at present, and has been selected as Wal-Mart's qualified supplier in Jan 2014. With a land of 21, 000 square meter and a plant of over 22, 000 square meter, equipped with 3 automatic production lines and research and testing facilities, Chuanglan is able to produce 500, 000 units annually. Thus, Chuanglan is the only manufacturer with research and development ability, production line and sales team on hybrid solar air conditioner industry, whose annually turnover is 32million US dollars. Thanks to its R&D ability and production capacity, It has been successfully marketing its products to over 130 countries. Chuanglan has made a big leap in a few years.
Aiming at becoming the top company in the clean energy development and usage area, Chuanglan considers solar air conditioner as its core product, and produces air purifiers, dehumidifiers, solar water heaters, atmospheric water generators and high energy water drinking machines at the same time. A technical, industrialization and internationalization Chuanglan is growing rapidly.
