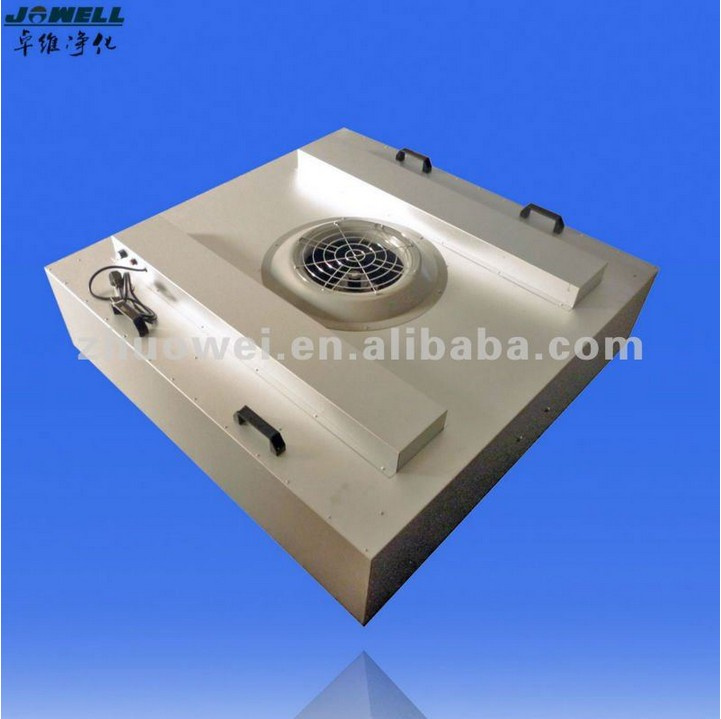

FFU series Fan Filter Unit
FFU, short for Fan Filter Unit, which draws in contaminated air from the top of the module, and exhausts filtered clean air vertically in a unidirectional(laminar) air stream at its base, is a self-contained fan and filter module for cleanroom applications.
FFU provides clean air as well as particle controlling. These series, the general dimensions of which are 2× 4 and 4× 4 inches, are often installed on the ceiling of clean rooms.
Application: Used in clean rooms ranging from class 100, 000 to 10, they can come into being ultra-clean assembly line, clean work office, clean booth, clean closet and etc.
1. Nice appearance, human centered design--Adding stainless handle, easy installation and delivery, and perpendicular design.
2. High performance and low noise fans--Adopting Energy-saving Multi-blade turbine fan, lower noise, Pressure spreads evenly, stable air velocity, low consumption, low running cost, service life can reach to longer than 80 thousand hours.
3. Light, thin shape--Without filter net, thickness of shape is 23cm, 25KG weight, application in low ceiling are also available.
4. Flexible, diversified design--Except for standard items, custom made FFU is available, such changings as filter nets, the materials of shell and etc...
5. Concerning, convenient design---Pedals are designed in the body, which makes it convenient to install and repair.
6. Premium Current-averaging design of the inside--Ensures deviation of the blowing side lower than ± 10%.
|
Model |
J-F2AHG |
J-F2BHG |
J-F2CHG |
|
Dimension |
mm |
1175*575*230 |
1175*1175*350 |
575*575*220 |
|
Air flow |
M 3 /h |
1400 |
2350 |
800 |
|
External static pressure |
Pa |
98 |
98 |
98 |
|
Main body |
- |
Standard |
Cold rolled steel plate with powder coated |
option |
Stainless steel(SUS304)
Galvanized steel |
|
Power supply |
Standard |
V/Hz |
220V 50/60Hz |
|
Option |
V/Hz |
Pls contact us if you have any other requirement about the power. |
|
Filter |
Efficiency |
- |
HEPA Over 99.99% @ 0.3um |
|
- |
ULPA Over 99.9995% @ 0.1um |
|
Frame |
- |
Aluminum |
|
Power dissipation |
W |
120 |
245 |
90 |
|
Weight |
Kg |
25 |
45 |
15 |
|
Shock |
m/s 2 |
≤0.4 |
≤1.1 |
≤0.4 |
|
Noise |
Db(a) |
≤55 |
≤55 |
≤55 |
|
Option |
- |
Differential draft gauge; Remote control; Duct flange for suction air; Pre-filter |
