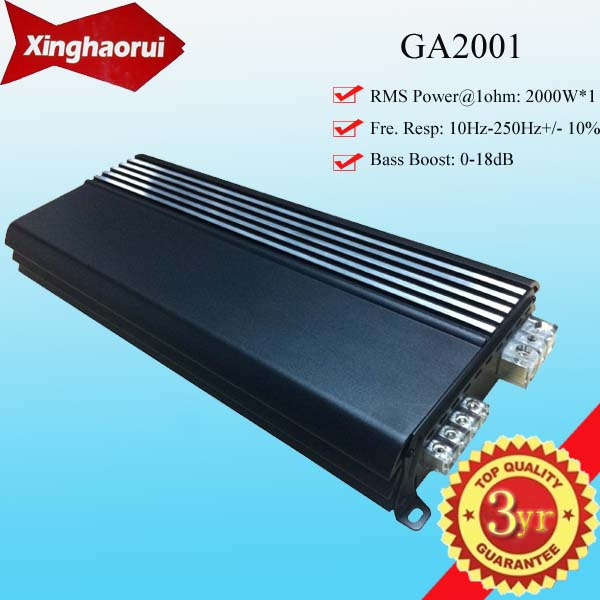

| Prod Model: |
GA2000.1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| RMS Power: |
2000W |
| Frequency Response: |
10Hz-250Hz +/-10% |
| Signal To Noise: |
> 86dB |
| Input Sensitivity: |
200mv-4V |
| Subsonic Filter: |
10Hz-50Hz |
| Lp Variable Crossover: |
30Hz-200Hz +/-10% |
| Certification: |
CE |
| Voltage: |
12/24V |
| Audio Output: |
Digital Optical Output |
| Placement: |
Dashboard |
| Type: |
Car Amplifier |
Product Description
Features:
1. Compact design based on modern Class-D Technology
2. Black sand blast with top muscle and white
3. Full range, Combine and Mono block subwoofer amplifier
4. Double side circuit board with precision SMT
5. 0-18dB at 45Hz Bass Boost
6. Phase adjustable for 3CH, 5CH and Mono Blocks from 0-180 degrees.
7. Variable subsonic filter for 3CH, 5CH and Mono Blocks
8. Line input from 0.2V to 4 V
9. Mono Block power output built on 1 ohm stable
10. Huge power terminal can hold 2#AWG( American Wire Gauge ) cable since 1600W Power Block
11. Dash mount remote gain include under voltage, over current, voltage, temperature.
12. All protect functions include under voltage, over current, voltage, temperature.
|
Model |
600.1D |
1000.1D |
1200.1D |
1500.1D |
2000.1D |
|
RMS Power @ 1 ohm-13.8V |
600W*1 |
1000W*1 |
1200W*1 |
1500W*1 |
2000W*1 |
|
RMS Power @ 2 ohm-13.8V |
400W*1 |
660W*1 |
800W*1 |
1000W*1 |
1350W*1 |
|
RMS Power @ 4 ohm-13.8V |
260W*1 |
400W*1 |
560W*1 |
680W*1 |
800W*1 |
|
Frequency Response |
10Hz-250Hz +/-10% |
10Hz-250Hz +/-10% |
10Hz-250Hz +/-10% |
10Hz-250Hz +/-10% |
10Hz-250Hz +/-10% |
|
Signal to Noise(IEC-A) |
> 86dB |
> 86dB |
> 86dB |
> 86dB |
> 86dB |
|
Separation |
N/A |
N/A |
N/A |
N/A |
N/A |
|
Input Sensitivity |
200mV-4V |
200mV-4V |
200mV-4V |
200mV-4V |
200mV-4V |
|
LP Variable Crossover |
30Hz-200Hz +/-10% |
30Hz-200Hz +/-10% |
30Hz-200Hz +/-10% |
30Hz-200Hz +/-10% |
30Hz-200Hz +/-10% |
|
HP Variable Crossover |
N/A |
N/A |
N/A |
N/A |
N/A |
|
Variable Subsonic Filter |
10Hz-50Hz |
10Hz-50Hz |
10Hz-50Hz |
10Hz-50Hz |
10Hz-50Hz |
|
Variable Boost Frequency |
40Hz-100Hz |
40Hz-100Hz |
40Hz-100Hz |
40Hz-100Hz |
40Hz-100Hz |
|
Bass Boost |
0-18 dB |
0-18 dB |
0-18 dB |
0-18 dB |
0-18 dB |
|
Phase Adjustable |
0° - 180° |
0° - 180° |
0° - 180° |
0° - 180° |
0° - 180° |
|
RCA Input model |
OK |
OK |
OK |
OK |
OK |
|
Input Impedance |
10 KΩ |
10 KΩ |
10 KΩ |
10 KΩ |
10 KΩ |
|
Damping factor |
> 200 |
> 200 |
> 200 |
> 200 |
> 200 |
|
T. H. D |
0.05% |
0.05% |
0.05% |
0.05% |
0.05% |
|
Fuse Rating |
30A*2 |
25A*3 |
35A*3 |
N/A |
N/A |
|
Cooling Method |
Natural Convection |
Natural Convection |
Natural Convection |
50*50*10 DC FAN |
50*50*15 DC FAN |
|
Remote control |
Optional |
Optional |
Optional |
Optional |
Optional |
|
Dimensions ( L*W*H ) mm |
220*175*52 |
260*175*52 |
300*175*52 |
320*175*52 |
380*175*52 |
