| Prod Model: |
LO-cross-1 |
| Display Content: |
Word/Graphics/Animation/Video/Time/Date/Temperatur |
| Brightness: |
6000CD |
| Max Power Consumption: |
160W |
| Control: |
WiFi / RJ45 / RF / RS233 |
| Pixel Configuration: |
One Green Color or Two Color or Full Color |
| Dimension: |
800*800mm,1000*1000mm |
| Usage: |
Indoor or Outdoor |
| Warranty: |
2 Years |
| Maitenance Way: |
Front Maintenance |
| Product Name: |
LED Pharmacy Cross |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP67 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Image & Text Display |
| Average Power Consumption: |
180W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| Certification: |
CCC |
Product Description

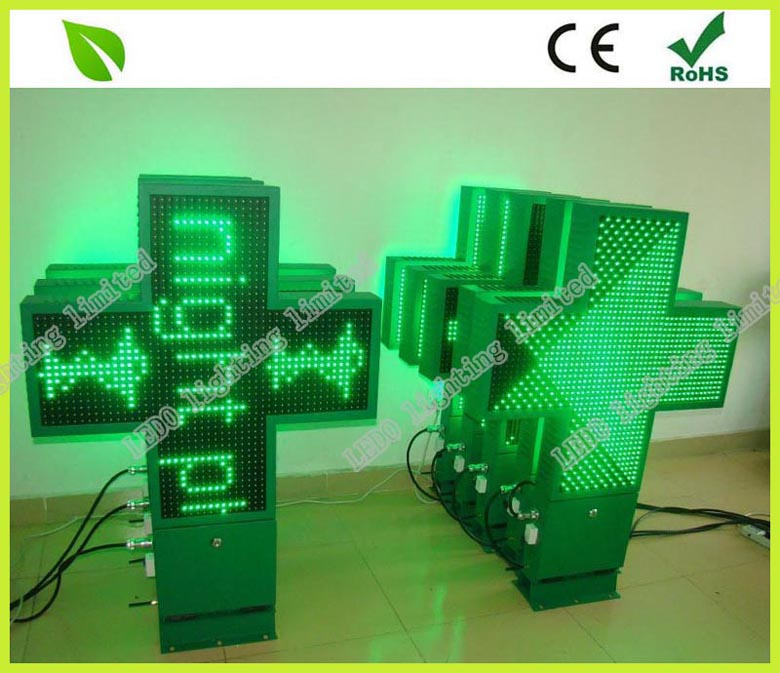

LED pharmacy cross sign board display
LED pharmacy cross sign board is one kind of special LED display , It use the LED advertising display screen technology , make the sign Clear , bright , fashion, and attractive . The main application areas: pharmacies, grocery stores, convenience store .
1. display function: word/graphics/animation/video/time/date/temperature
2.Many kinds of dimension ,color ,graphics
3.Support many languages ,easy installation
4.LED pharmacy cross sign board
Product Description for led pharmacy sign board:
1,Pixel Pitch:10mm,16mm,20mm,25mm
2,Pixel configuration: one green color or two color or full color
3,display content: word/graphics/animation/video/time/date/temperature
4,Display Pixels:4608 dots(for two sides, one side is 2304)
5,Brightness: 6000CD
6,IP grade:IP65
7,MAX Power Consumption:160W
8,control: WIFI / RJ45 / RF / RS233
9,Packing method : plywood box
LED pharmacy cross sign board specification:
| LED pharmacy cross Type | Color | One side/Two sides | Max Power | NW | Size | Cabinet material |
| LIYI-CROSS-500 | SC:R/G/B
TC:RG/GB/RB
FC:RGB | Two sides | 300W | ≤15KG | 890×540×100mm | steel/aluminum |
| LIYI-CROSS -800 | SC:R/G/B
TC:RG/GB/RB
FC:RGB | One side | 150W | ≤16KG | 820×820×100 mm | steel/aluminum |
| Two sides | 300W | ≤26KG | 1180×820×100 mm |
| LIYI-CROSS -1024 | SC:R/G/B
TC:RG/GB/RB
FC:RGB | Two sides | 720W | ≤48KG | 1440×1080×100 mm | steel/aluminum |
| LIYI-CROSS -1000 | SC:R/G/B
TC:RG/GB/RB
FC:RGB | One side | 150W | ≤25KG | 1010×1010×100 mm | steel/aluminum |
| Two sides | 300W | ≤38KG | 1370×1010×100 mm |
| LIYI-CROSS -1200 | SC:R/G/B
TC:RG/GB/RB
FC:RGB | One side | 305W | ≤38KG | 1250×1250×100 mm | steel/aluminum |
| Two sides | 610W | ≤58KG | 1610×1250×100 mm |
| Mini LED pharmacy sign | SC:R/G/B
| One side | 25W | ≤8KG | 500×500×100 mm | steel/aluminum |
| Two sides | 50W | ≤10KG | 600×600×100 mm |
We are the professional of LED product manufacturer .especially in the LED pharmacy cross field , we have designed dozens of different LED pharmacy cross sign .Due to our good design and quality ,we had sold lots of LED pharmacy cross display to all over the world and obtain many good reputation and praise .If you are interested in this LED pharmacy cross sign ,please no doubt to contact us .
