| Prod Model: |
CR3000 |
| Markets: |
North America,South America,Southeast Asia,Africa |
| Type: |
Professional Amplifier |
| Usage: |
KTV System |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Sound Channel: |
2.1 |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Output Number: |
2 |
| Conductive Mode: |
H |
Product Description
FEATURES
Can be switched between stereo and mono channel.
Powerful supply capacity of current load.
Classic well designed circuit. Quality of electronic components, working in H forms. make the products excellent.
Wide frequency response, low distortion so that the voices of more accurate and fidelity.
Multiple sound protection features such as over-current, over-voltage, over-temperature, overload, DC, and so on.
Efficient power management, make the machine more environmentally and safe.
Can choose longer version.

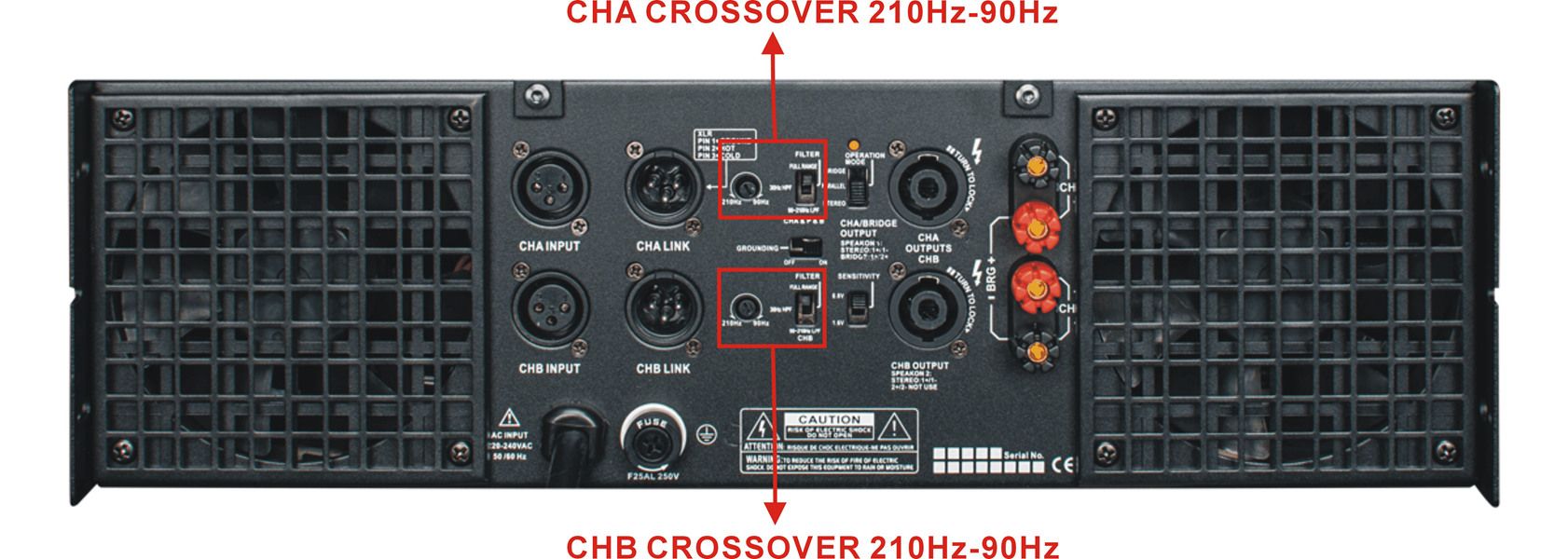

Built in high performance low pass filter.
- Can endure 8ohm, 4ohm and 2ohm loads
- Highly reliable and stable

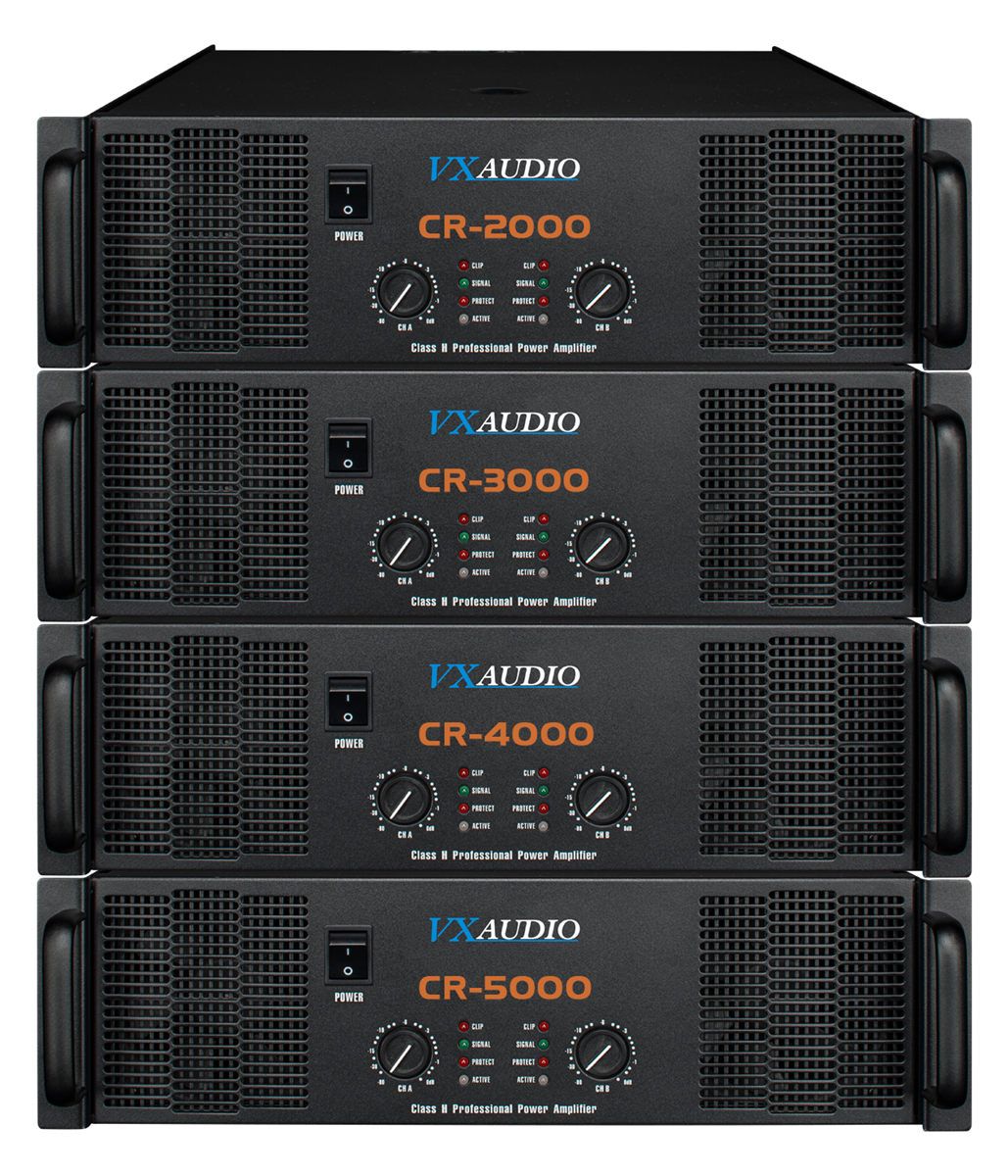

| Model | CR3000 |
| Stereo Power 8Ω | 2*650W |
| Stereo Power 4Ω | 2*975W |
| Stereo Power 2Ω | 2*1300W |
| BTL 8Ω | 1950W |
| BTL 4Ω | 2600W |
| Frequency Response | 5--50K±0.5dB |
| THD+N | <0.05%@8Ω 1kHz |
| S/N Ratio | >102dB |
| Slew Ratio | 50V/u S |
| Damping Factor | >400 |
| Crosstalk | >65dB@8Ω 1kHz |
| Input Impedance | 20KΩ(Balance)/10KΩ(Unbalance) |
| Input Sensitivity | 1V |
| Protect | Overheat short circuits,DC,limit and--softstart,Output relay-Zero Current Switch,Intellctual Clip limiter |
| Height | 3U |
| Gross Weight | 28KG |
| Dimensions | 655×585×200MM |
