| Prod Model: |
PS280-02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2.8 Inch |
| Module Size: |
33.3(W) X41.6(H) X2.4(D) Mm |
| Active Area: |
43.2(W) X 57.6(H) Mm |
| Resolution: |
240X 3(RGB) X 320 |
| Brightness: |
200 CD/M2 |
| Contrast Ratio: |
500 |
| Operating Temperature: |
-20---60 Degree |
| Storage Temperature: |
-30---70 Degree |
| Type: |
LCM |
| Display Technology: |
TFT |
| Usage: |
Mobile Phone |
| Response Time: |
10ms |
| Customized: |
Customized |
| Viewing Angle: |
20/45/45/45 Degree |
Product Description
Product Description
1. Applications:
Mobile phones and PDAS/consumer electronics/automotive/ telecoms and data transfer/medical instruments/security management /signs and display/point of sale, EPOS /Energy control/amusement and gambling machines/white goods, GPS navigator
2. Company Advantage
1). Small MOQ accepted.
2). Competitive price and short lead-time.
3). ISO9001 and RoHS certificated factory supplied.
4). TFT LCD module, touch panel, PCB with SMT/COB solutions.
3. Packaging and Delivery:
1). Payment Terms: T/T, Paypal
2). Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
3). Delivery time: 7-10 days for goods in stock, 3-4 weeks for mass production goods.
4). Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation.
5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
6). Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.
|

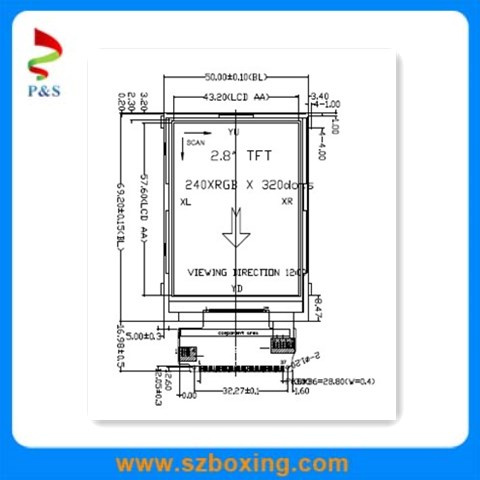

Mechanical Specifications |
|
|
|
|
|
|
|
Item |
Specification |
Unit |
Remark |
|
LCD Size |
2.8 |
inch |
|
|
Outline dimension |
33.3(W) ×41.6(H) ×2.4(D) |
mm |
|
|
Active area |
43.2(W) × 57.6(H) |
mm |
|
|
Dot pitch |
0.054(W) × 0.054(H) |
mm |
|
|
Resolution |
240(RGB)×320 |
pixel |
|
|
Item |
Symbol |
Condition |
Values |
Unit |
|
Min. |
Typ. |
Max. |
|
Viewing angle(CR≥10) |
θL |
Φ=180° |
35 |
20 |
– |
degree |
|
θR |
Φ=0° |
35 |
45 |
– |
|
θT |
Φ=90° |
35 |
45 |
– |
|
θB |
Φ=270° |
10 |
45 |
– |
|
Response time |
TON |
Normal
θ=Φ=0° |
– |
10 |
20 |
msec |
|
TOFF |
– |
20 |
30 |
msec |
|
Contrast ratio |
CR |
– |
500 |
– |
– |
|
Color Chromaticity |
WX |
0.28 |
0.31 |
0.33 |
– |
|
WY |
0.32 |
0.35 |
0.37 |
– |
|
Luminance |
L |
– |
200 |
– |
cd/m2 |
|
Absolute Max.Rating |
|
Item |
Symbol |
Value |
Unit |
Remark |
|
Min |
Typ |
Max |
|
Supply voltage |
VDD |
-0.3 |
– |
4.6 |
V |
– |
|
Operating temperature |
TOPR |
-20 |
– |
60 |
degree |
– |
|
Storage temperature |
TSTG |
-30 |
– |
70 |
degree |
– |
|
Backlight Driving Conditions |
|
Item |
System |
Value |
Unit |
Remark |
|
Min |
Typ |
Max |
|
Voltage for LED Backlight |
VL |
– |
3.2 |
– |
V |
|
|
Current for LED Backlight |
IL |
– |
80 |
– |
mA |
|
|
LED Life time |
– |
20,000 |
– |
– |
Hr |
|
