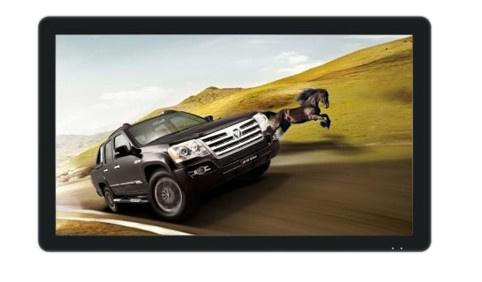

19'' Wall Mount LCD Retail Advertising Display

Product Description
Our Wall Mounting 19'' LCD advertising player can be sorted into two versions according to function. One is standalone version, which uses CF card to update dvertising content, this is suitable for customesr who purchase only a few LCD displays, they could save the content they want to display into CF card, then insert CF card into LCD display to update content. The other is network version, update advertising content via internet which support RJ45 interface, WiFi and 3G. This is ideal for customers who purchase many LCD displays, they can set a server and update many displays content via internet, do not need to update one by one, very convenient.
Product Specification
Panel Type: Samsung Original LCD panel
LCD advertising screen Size: 19''
Outline Dimensions (mm): 618(h) X 370(V) X 49.7(d)
Active Area(mm): 408.2(h) X 255.2(V)
Display Resolution: 1280 X 768
Brightness(CD/): 350CD/m2
Aspect Ratio: 16: 9
Contrast Ratio: 1000: 1
Respond Time; 6.5MS
Color; 16.7M
Color Gamut: 72%(NTSC)
Lifespan: >60, 000 hrs
Back Light: LCD/LED
Input Voltage: AC110-240V(50Hz-60Hz)
Power Consumption: 30W
Static Power consumption: 1W
Video Format: MPEG-1, MPEG-2 MP@HL, MPEG-4.2 ASP@L5 (720p), MPEG-4.10 (H. 264) BP@L3, [email protected] and [email protected], WMV9 MP@HL, SMPTE421M (VC-1) MP@HL and AP@L3
Picture Format: GIF, JPEG, PNG, BMP
Audio Format: MPEG-1 Layers I, II and III (MP3) 2.0, 24-bit linear PCM7.1
Word Format: . TXT
Memory card: CF
Loudspeaker: 5W*8
SD Card Capacity: 8GB
The default boot mode: JPEG, MPEG, MP3,
Certification: CE/FCC/RoHS/CCC
Waterproof Rating: IP32
Network type: RJ45/WiFi/3G
USB Type: USB2.0
Interface: One RJ45 interface: One WiFi receiver, one USB interface, one 3G, WCDMA, one SD card interface.

Video format
MPEG1/MPEG2/MPEG4/DIVX/ASP/WMV/AVI
Audio format
Wave/MP3/WMA/AAC
Image format
JPEG/BMP/TIFF/PNG/GIF
Image resolution
480P/720P
Play mode
Power on, single card auto loop play; Classified files auto loop play; Multi cards auto loop display etc
Time

Year/month/day/week/h/m/s, in the top right corner (open and close optional)
Timing open & close
5 times per day, 7 days a week, free time
Timing play
7 days a week, free set the play program everyday
Alarm clock

Set 5 alarms one day, once ring the alarm, play the specified program
OTG
Support copy, delete, remove, rename, build new file among different cards
Running subtitle
Can set the play location, word size, color and back-color
Log files
Record the play time (concise to second), the play contents
Angle subscript display function

Can set the play time, just support BMP picture with biggest resolution 160*90
Memory function

Power off, memory the time of the play; Power on, play from the time, not from beginning
Key and lock function
Use the remote controller after inputting the password
Interface
USB flash drive, SD card(MMC/MS compatible), CF card
Encrypt CF card
Play the contents in the CF card after inputting the password
Sound volume
Can set the volume of sound in the different time
Storage card lock
Have a anti-theft lock in the case, equip 2 sets key
Other function
Customized

About Warranty
1) All products from BBC will be provided one year free maintainance warranty. (Hardware and software maintainance). During warranty period, free replacement of damaged parts for quality problems will be sent to you.
2) After warranty period, we provide lifetime maintenance services, spare parts costs are be charged based on actual cost. 7*24 hours technical support service.
3) In response time, When the client's system has abnormal situations, we will provide on-line or hotline technical support mmediately to help customers solve problems and proposed rehabilitation plan; For the scene maintenance, after receipt repair information, engineers will go on site first.
4) According to customer's requirement, we provide system maintenance services once every six months.
