| Prod Model: |
YCD-18HRFN1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Central Air Conditioners |
| Capacity: |
18000-24000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
36-49dB |
| Certification: |
BEB |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
Product Description

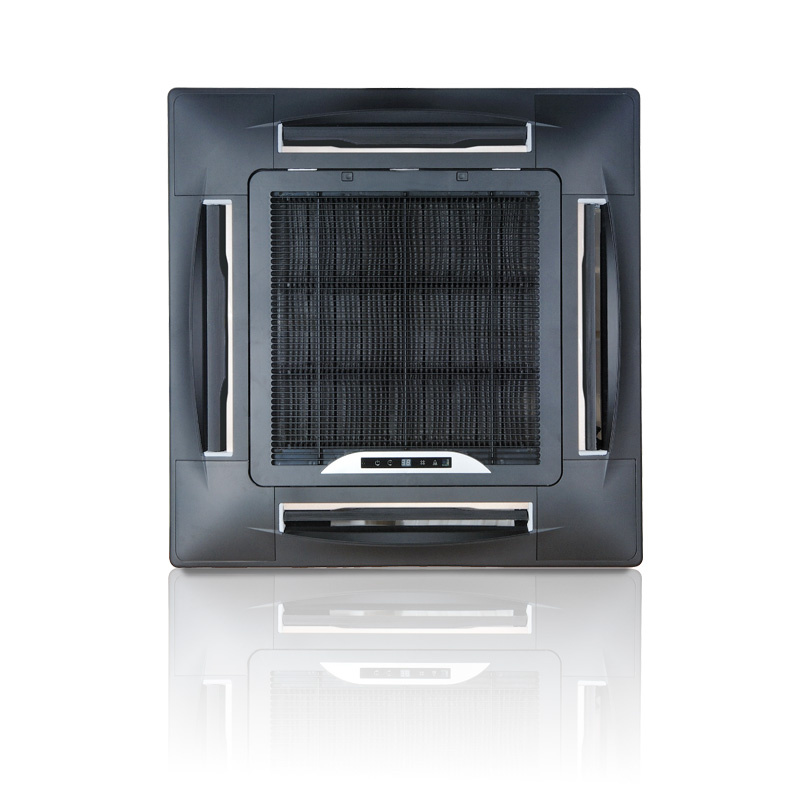

18000Btu Cooling Only Ceiling Cassette Type Air Conditioner
Feature
1. Lifting easy-clean
2. Touch screen wired controller
3. Twin combination
4. Reserved remote on-off and alarm ports
5. Automatic defrosting
6. Automatic restart function
7. Anti-cold air function
8. Led display
9. Sleep mode
10. Independent dehumidification
Specification
Pdesignc | kW | 5.3 |
| SEER | W/W | 5.6 |
| Energy Efficiency Class |
| A+ |
| Pdesignh | kW | 5.3 |
| SCOP | W/W | 3.4 |
| Energy Efficiency Class |
| A |
| Tbiv | ºC | -5 |
| Tol | ºC | -15 |
| Power supply | V-ph-Hz | 220~240-1-50 |
| Cooling | Capacity | Btu/h | 18000 |
| Input | W | 1570 |
| Current | A | 7.19 |
| EER | W/W | 3.36 |
| Heating | Capacity | Btu/h | 18000 |
| Input | W | 1420 |
| Current | A | 6.50 |
| COP | W/W | 3.72 |
| Indoor fan motor | Model |
| WZDK42-38G |
| Qty |
| 1 |
| Output | w | 42 |
| Capacitor | uF | / |
| Speed(hi/mi/lo) | r/min | 580/500/400 |
| Indoor coil | a.Number of rows |
| 2 |
| b.Tube pitch(a)x row pitch(b) | mm | 21x13.37 |
| c.Fin spacing | mm | 1 |
| d.Fin type (code) |
| Hydrophilic aluminium |
| e.Tube outside dia.and type | mm | Φ7,inner grooved tube |
| f.Coil length x height x width | mm | 2010x168x26.74 |
| g.Number of circuits |
| 8 |
| Indoor air flow (Hi/Mi/Lo) |
| m3/h | 1250/950/800 |
| Indoor sound pressure level (Hi) |
| dB(A) | 48/44/38 |
| Indoor sound power level (Hi) |
| dB(A) | 58 |
| Indoor unit | Dimension (W x Dx H)(body) | mm | 840x840x205 |
| Packing (W x Dx H)(body) | mm | 900x900x225 |
| Dimension (W x Dx H)(panel) | mm | 950x950x55 |
| Packing (W x Dx H)(panel) | mm | 1035x1035x90 |
| Net/Gross weight(body) | kg | 22/25 |
| Net/Gross weight | kg | 5/8 |
| Design pressure |
| MPa | 4.2/1.5 |
| Drainage water pipe dia. |
| mm | ODΦ32 |
| Refrigerant piping | Liquid side/ Gas side | mm | Φ6.35/Φ12.7(1/4"/1/2") |
|
| RG51C/E |
| Operation temperature | Cooling | ºC | ≥17 |
| Heating | ºC | ≤30 |
