Amongo Display Technology Co., Ltd-----Your Dispaly Expert
Features:
1. Top brand in industrial displays
2. VGA, DVI inputs with Wide operating temperature from -30 to 80 degrees
3: Strong and professional R&D team.
4: Any size from 5" to 65" are available supporing any existing OS system. More than 350 LCD models had been developed.
5. Optional touchscreen: 4-wire/5-wire Resistive, Infrared, SAW, Scap, Pcap.
6. High brightness, Sunlight readable, light sensor, IP65 optional.
7. Custom-made service is available.

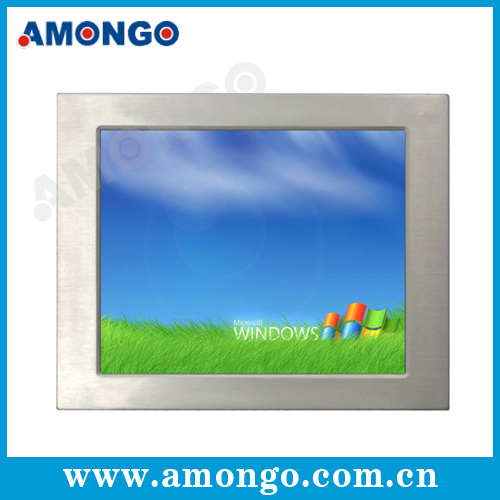

Model Name
AMG-17IPAU01T1-V1
Screen Size
17"
Active Display Area (mm)
337.920 (H) x 270.336 (V)
Pixel Pitch (mm)
0.264 (H) x0.264 (V)
Display Mode
Normally white
Display Resolution (pixel)
1280x1024
Contrast Ratio
800:1
Display Color
16.7M
Brightness (CD/m2)
300
Backlight
CCFL/LED
Viewing Angles (CR =10)
160 (H); 160 (V)
Response Time(Typ.Tr+Tf)
5ms
Signal Connector
VGA/DVI
Power Consumption
DC 12V
Dimension(VxHxT)
440.6x354.6x56.8
Operating Temperature
-30~80°C
Storage Temperature
-30~80°C
Relative Humidity
5(%RH)~90(%RH)
Amongo DIsplay Technology (Shenzhen) Co., Ltd., is a leading manufacturer specialized in designing & producing Industrial LCD Monitor, Open Frame, Touching monitor and Panel PC and etc., we developed more than 300 models LCD items as well as A/D board and inverter board. The main application is for ATM, Self-service Kiosk, Digital Signage, Gaming, POS, Medical Treatment, Media Player and other industrial control area. Any OEM product is available.
With years professional experience in industrial LCD display, strong R&D teamwork and excellent quality control system, we had cooperated successfully with some of biggest ATM manufacturers worldwide. With a large production capacity, it's available for us to do the delivery in a short time.
Amongo would like to develop together with all our customer strongly. We aim at our "good quality" "speed service" "professional and innovative work" helping you to create higher values.
