| Prod Model: |
TC1602S-03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outline Dimension: |
73.5 X 32.5mm |
| Viewing Area Size: |
47.0 X 15.0mm |
| Warranty: |
12 Months |
| Certificate: |
RoHS,ISO9001:2008 |
| Type: |
Character |
| Display Technology: |
STN |
| Usage: |
Small-sized LCM |
Product Description

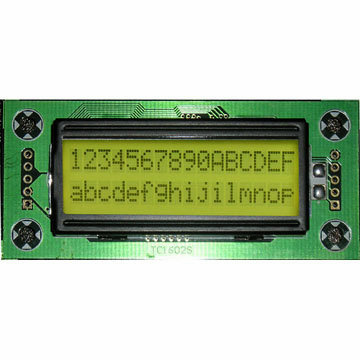

16x2 Monochrome LCD Display
1)Construction COB(Chip-on-Board)
2)Display Format 16x2 Characters
3)Display Type STN, Transflective, Positive, Y-G
4)Controller SPLC780D1 or equivalent controller
5)Interface 4-bit parallel interface
6)Backlight yellow-green/side light
7)Viewing Direction 6 O'clock
8)Driving Scheme 1/16 Duty Cycle, 1/5 Bias
9)Power Supply Voltage 5.0 V
10)VLCD Adjustable For Best Contrast 5.0 V (VOP. )
11)Operation temperature -10° C to +60° C
12)Storage temperature-20° C to +70° C
Established in 1995, Guangzhou Tinsharp Industrial Co., Ltd. is one of the major manufacturers of Liquid Crystal Displaying (LCD) products in China. We specialize in design, manufacture and sale of LCD and LCD modules.
Having accumulated precious experience in this field, our production capacity and expertise have been growing sharply along with the market share. With the support of our professional and devoted work team specialized in both R&D and total quality control, we are able to supply cost-effective and quality guaranteed products in the LCD and Liquid Crystal Modules (LCM) areas. Moreover, both standard series and customer-tailored products are available.
Specifically, the main products include:
1) Character and graphic LCD modules
2) Segment LCD modules
3) TN/STN/FSTN LCD panels
4) Customized LCDs/LCD Modules
Our products have been widely used in many fields, such as measuring instruments, electrical appliances, and communication terminals. About one third of our products are selling well directly and indirectly in the American, East Asian, and European markets.
