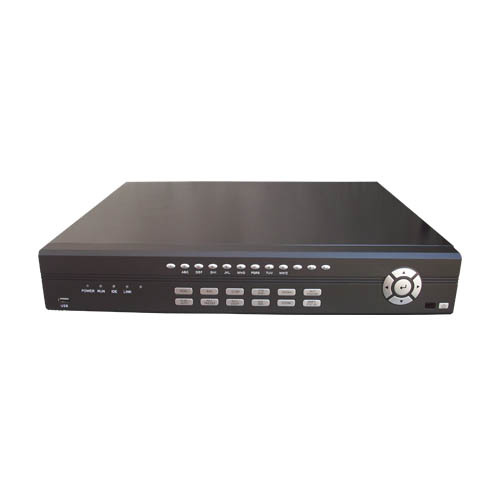

Sixteen-channel h. 264 standalone DVR built-in web server, multi-client, mobile phone monitoring, simultaneous record, search, playback and network capabilities.
Specifications
Video coding strengthened h. 264
User interface 16 bits real-color image menu operation interface
Resolution preview PAL: 720*576(4CIF)
NTSC: 720*480 (4CIF)
Record PAL: 704: *288 (CIF)
NTSC: 704+240 (CIF)
Video input 8chbnc (electrical level: 1.0vp-p, resistance: 75ω )
Video output 1-CH
BNC (electrical level: 1.0vp-p, resistance: 75ω )
1-CH, VGA optional (resolution: 800*600/60Hz, 1024*768/Hz)
Max frame rate NTSC: 120fps
PAL: 100fps
Audio 4 CH RCA audio input, 1 CH RCA audio output
Playback 1-16 CH playback simultaneously
Stream type video/ video & audio
HDD ata-100 interface, 2 hdds, 1000GB each
Network interface 1 RJ45 10m/100m self-adaptive ethernet interface
USB interface 2 USB2.0, can support USB memory/HDD, USB CD/DVD writer
PTZ control RS-485 ports; Support pelo-d\pelco-p\b01\Samsung etc
Signal loss alarm 16 CH alarm input, 2 CH alarm output
Power supply DC 12 v power supply; 9w (without HDD) power consumption
Work condition -10° C -- +55° C; 10%--90% humidity
Dimension DVR 430mm x 3660mm x 7mm = cbm
Packing 540mm x 450mm x 170mm = 0.042cbm
Weight 4.3 kg (with packing)
VD Security Technology Ltd. is dedicated to providing kinds of CCTV products, such as outdoor IR cameras, vandal proof dome cameras, IP cameras, mini cameras, covert cameras and standalone digital video recorders.
Our company has been in surveillance area for many years. There are some advantages of our company.
1. Good quality: As 90% our products are exporting, we can understand good quality can keep long business relationship and our after sales will be cheap. In this case we just sell the products which are with mature technology.
2. Good package: Our package is the standard package for exporting. This will ensure that your goods will be not damaged in the shipping.
3. Low delivery costs: Our company has cooperated with DHL, EMS, TNT and UPS with many years. We have very good relationship with them. In this case, customer will not pay high shipping costs for the products. The total cost is reduced. Another important thing is that we can send you the goods on time.
4. Good warranty: 2 year's warranty.
Right now, our customers are all around of the world. In order to develop market, we are always looking forward to business partners. Welcome to join us! OEM orders are welcome!
