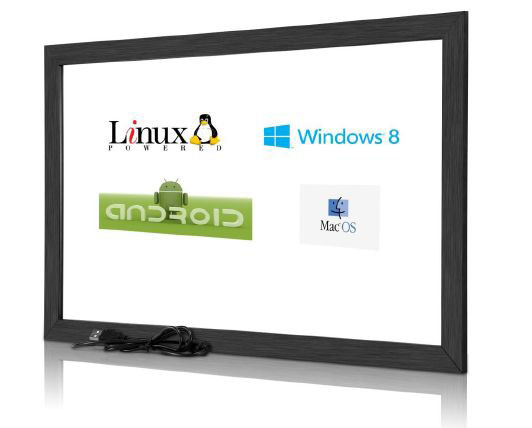

15 inch touch screen
WiViTouch Infrared touch screen:
1. Aluminum alloy frame, It can be built-in installation or bulit-out;
2. High touch accuracy with dense tube design;
3. High and stability performance with fault-tolerant design;
4. Anti-sunlight, dustproof, Vanda-proof, Anti-Scratch
5. Easy to maintain and upgrade with built-in hardware self-test function;
6. Plug and play in multiple operating systems: Android(It suggests to use with our Android pc, since not every Android box is
Compatible with our touch screen ), Windows8(Genuine version, Ghost version ), Linux (If your Linux version does not support plug
And play, please send WiViTouch your linux version, we will adjust the touch screen according to your Linux system), Mac, XP, Win7
OS.
7. Greatly extend the life of the product with no touch dormancy mechanism;
8. Warranty: 1 year.
Typical Applications:
*Interactive whiteboard *Directories and Wayfinding *Hotel entertainment center
*Conferences *Mall kiosks *Overlay
|
Size |
|
General Size |
10.4" to 82" |
|
Customized Size |
9.7" to 150" |
|
Performance |
|
Touch accuracy |
±2mm (for 40" touch screen) over 90% of the touch sensitive area |
|
Resolution |
32768*32768 |
|
Response Speed |
2-5ms (two-point touch) |
|
Mechanical |
|
Input Method |
Finger, gloved hand, or any other pointer |
|
Touch durability |
Unlimited |
|
Sampling rate |
60PT/s |
|
Touch Activation Force |
No pressure required |
|
Optical |
|
Light Transmission |
Up to 100% (no glass), AR glass 92%, Tempered glass 88% |
|
Environmental |
|
Temperature |
Operating: 0°C ~ 55°C |
|
|
Storage: -30°C ~ 80°C |
|
Relative Humidity |
Operating:10% to 90% RH(non-condensing) |
|
|
Storage:10% to 90% RH(non-condensing) |
|
Electrical |
|
Power Supply |
USB |
|
Agency Approvals |
CE, FCC Class B |
|
Interface |
USB 2.0(full-speed) |
|
Operating Systems |
Windows 7\Windows XP\Windows Vista\Linux\Mac\Win8\Android OS |
|
Life Time |
5 years |
