| Prod Model: |
15PS100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Aluminium Cast |
| Size: |
15 Inches |
| Color: |
Black |
| OEM Service: |
Accepted |
| Warranty: |
1 Year |
| Certification: |
FCC |
| Application: |
Stage, Events, Shows, Church, Djs, Club |
Product Description
Overview
1) High-quality replacement speaker for PA loudspeakers
2) 8 Ohms
3) Paper cone, Aluminium Frame

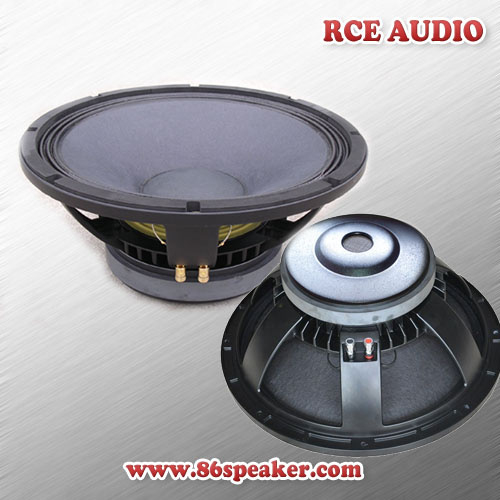

Model: 15PS100
15" Low & Bass Transducer / Raw Woofer Speaker / Professional Speaker Replacement
Nominal Diameter : 15 inch
Nominal Impedance: 8 ohm
Power Rating: 500W
Resonant Frequency: 38 Hz±10%
Frequency Range: Fo--2 KHz
Sensitivity: 97dB±2dB(1W/1m)
D.C.Voice Coil Resistance: 5.5Ω±10%( at 20°C)
Voice Coil Diameter: Φ99.3 mm
Voice Coil Winding Depth: 21 mm
Voice Coil Wire Material: Copper
Voice Coil Bobbin: Glass Fiber
Magnet Depth: 10 mm
Magnet Material/Size: Ferrite/Φ220mm×Φ110mm×25mm
Frame Material: Aluminium
Surround,Cone and Dust Cap: Treater cloth/Paper/Paper
Polarity: Positive voltage on RED terminal gives forward cone motion
Net weight: 11.5 Kg
