| Prod Model: |
MA713 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
| Channels: |
Two Channels |
| Transistors: |
24 Pairs |
| Height: |
3u |
| Type: |
Professional Amplifier |
| Usage: |
Stage |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
AB |
| Sound Channel: |
2.0 |
| Output Number: |
2 |
| Voltage: |
90~135V 135V~240V |
Product Description

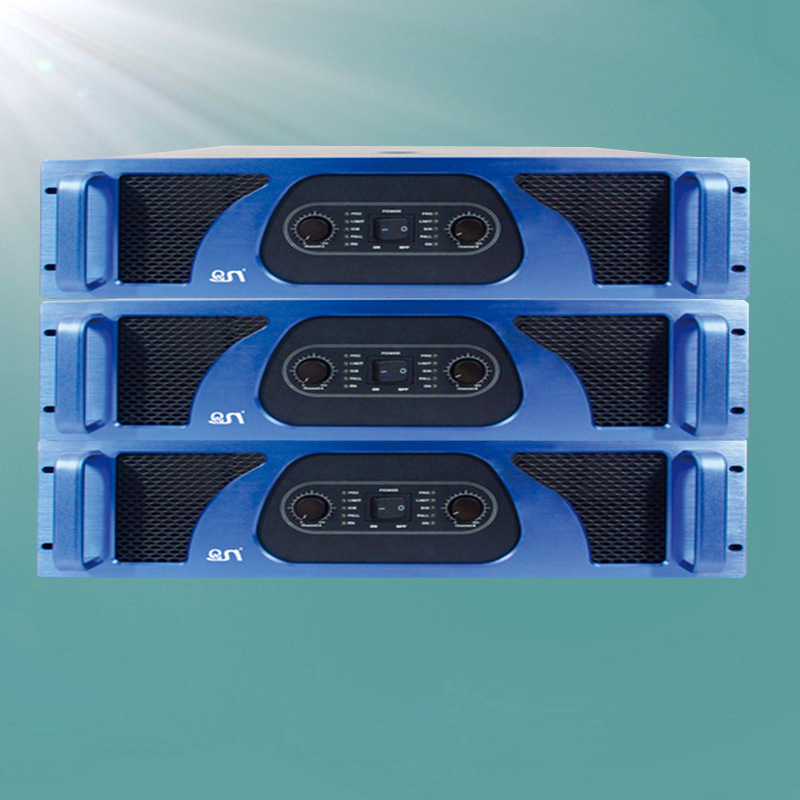

Name:1300W Transistor Professional Stereo Power Amplifier(MA-713)
Model: MA-713
Tech Desciption:
1)Rated power is 1300W*2 8 ohm(2000W*2 4 ohm).Peak power is 3000W
2)IMD is less than 0.1%
3)Signal to noise is 95db and can be changed/adjusted
4)CMR is more than 70db
5)Silent boot,Soft start
6)DC prodection,over load protection,short cuirt protection.
7)Input indepence is 20Kohm(Stereo mode) and 10Kohm(Parallet mode)
8)Application type is Class AB
9)XLR connect,every connector has two parallel connection connector.
10)The amplifier can gained/adjust to 26db,29db,32db,35db and 38db.41db,44db
11)Signal to noise can be adjust as the db changed by adujust the button on rear panel
Singal: 1.Yellow to pint Bridging or parallet indicator light(B/P)
2.Blue to point to amplifier is on work.
3.Green to point the amplifier is work normal.
4.Red to point the amplifier is on the protection condition.
5)Yellow(Limit) to point the singal has been clipped.
Size is 49W*13H*50Gcm Or 49W*8H*40cm
Net weighht is 31Kg for MA-713 1300W
We have 450W,600W,800W,900W,1000W,1100W,1300W of the same series.
| Model | MA713 | MA711 |
| Power 8Ω | 1300W | 1100W |
| Power 4Ω | 2000W | 1650W |
| Frequency response | 20Hz-20KHz,( +0,-0.3dB,1%Power) | 20Hz-20KHz,( +0.5,-0.5dB,1%Power) |
| Signal to noise | 95dB | 95dB |
| channel divided | ≥70dB(1KHz) | ≥70dB(1KHz) |
| THD | ≤0.08%(8Ω,1KHz,1%Power) | ≤0.08%(8Ω,1KHz,1%Power) |
| Input impendance | 20KΩ(Balance input,stereo mode)/10KΩ(Balance input,Balance input) | 20KΩ(Balance input,stereo mode)/10KΩ(Balance input,Balance input) |
| Supply power | 6000W | 5000W |
| Conversion rate | ≥10V/us(8Ω,10KHz) | ≥10V/us(8Ω,10KHz) |
| The gain selection | 26dB/29dB/32dB/35dB/38dB/41dB/44dB | 26dB/29dB/32dB/35dB/38dB/41dB/44dB |
| Net weight | 33KG | 32KG |
| Size(mm) | 483W × 502D × 132H | 483W × 502D × 132H |
| Package size(mm) | 590W × 545D × 190H | 590W × 545D × 190H |
Guangzhou YunQiang Electronics Co., Ltd. is a professional audio manufacturer which has R& D, Production department, Marketing Dept., and Technical and service Dept.,
The main products include: Power Amplifier, Karaoke amplifier, Professional Speaker, Karaoke speaker, Sound Mixer, Audio processor and Conferencing systems.
Nowadays, in professional sound industry, more and more people are seeking for amplifiers with light weight, high power output, high sound quality and high stability.
To get good sound quality, we should have high quality components. And to ensure the stability, we must solve the problem of heat dissipation. Now, we have this amplifier FP14000, FP10000Q, FP-8000Q. Our FP14000, FP10000Q, FP-8000Q is Class TD switching amplifier fixed with NOVER (from UK) power capacitors, ON-Semi power transistors other high quality electronic spare parts. Professional circuit design and actual copper heat sink with better structure make fast heat dissipation possible. And fast heat dissipation contributes to high stability of the amplifier. Once you have our amplifiers at your hands, open the chassis, you will find artwork and detail difference. The swich power amplifier can be used to drive line array loudspeaker systems in touring, living show and other applications with high requirement on sound quality and stability.
Since the foundation of our enterprises, we have been concentrating on designing new products, doing research on new sound technology, training our staff, as well as improving our quality to products and management system. And now we have had a unique management experience, advanced production equipment, abundant design capability, and the large marketing network and after-sales service system.
Now we have passed newest CE, FCC, RoHS, SGS, CCC, ISO9001 on March, 2015.
