Prod Model: YB12864ZC
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display Format: 128X64 Dots
Outline Dimension: 113.2*65.2*13mm
Visual Area: 73.4*38.8mm
Active Area: 70.35*35.15mm
Diagonal Size: 3.3 Inch
IC Package: COB
IC Or Equivalent: St7920 or Eqv
Appearance: Blue/Yellow Green/Grey
Power Supply(Typ): 3.3V/5V
Backlight Current (Typ): 75mA
Type: LCM
Usage: Small-sized LCM
LCD Drive Mode: Static Drive LCD Module
Digital LCD Module Type: Counting Module
Display Technology: COB
Response Time: 2ms
Customized: Customized

Product Description

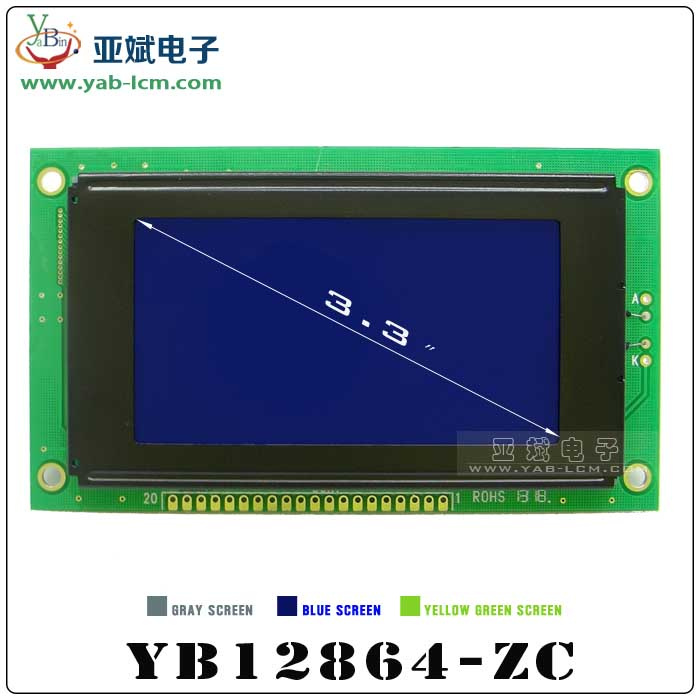

12864 graphic lcd display 128X64 lcd moudle


1.Product Description

ManufacturerYaBin
Series NumberYB12864ZC
Display Format128x64 Dots
Outline Dimension113.2*65.2*13mm
Visual Area73.4*38.8mm
Active Area70.35*35.15mm
Diagonal Size3.3'
Dot (Pixel) Size0.5*0.5mm
Dot (Pixel) Pitch0.55*0.55mm
IC PackageCOB
IC or EquivalentST7920 or EQV
Interface8-bit/4-bit Parallel,3-SPI Serial
InterfaceParallel
Display TypeSTN/FSTN
Sunlight ReadableNo
Touch Panel OptionalNo
Contrast Ratio(Typ)No
Viewing Direction6:00
LED Backlight ColorBlue /Yellow Green /Gray
AppearanceWhite on Blue/Black on Yellow Green/White on Gray
Power Supply(Typ)3.3V/5V
Backlight Current (Typ)75mA
Operating Temp-20ºC~70ºC
Storage Temperature-30ºC~80ºC
If accept customizedYes
RoHS Compliance
Yes




2.Interface pin connection:

ITEMSYMBOLLEVELFUNCTIONS
1LEDK0VPower Supply For LED Backlight
2LEDA+5V
3VSS0VPower Ground
4VDD+5VPower Supply For Logic
5NC-No Connection
6RS(CS)H/LRegister Selection for Parallel mode/Chip Enable for Serial mode
7R/W(SID)H/LL:Write  H:Read/Serial Data Input
8E(SCLK)H,H->LEnable Signal/Serial Clock
9-16DB0-DB7H/LData Bus
17PSBH/LH:Parallel mode  L:Serial mode
18/RESTLReset Signal
19VOUT-Output Voltage for LCD Driving
20V0-Contrast Adjust
