Prod Model: |
PIA120 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Power Supply Voltage: |
110~125V AC or 220 |
Rated Power: |
120W |
Frequency Response: |
50~15,000Hz(±3db) |
Working Temperature: |
-10to +40 |
Size(W*H*D): |
483X90X410mm |
Weight: |
11kg |
Color: |
White |
Type: |
Professional Amplifier |
Function: |
Amplifier Combined |
Element Number: |
Monoamplifier |
Used For: |
Professional |
Tube Type: |
Transistor Amplifier |
Usage: |
Commercial |
Product Description
Product description

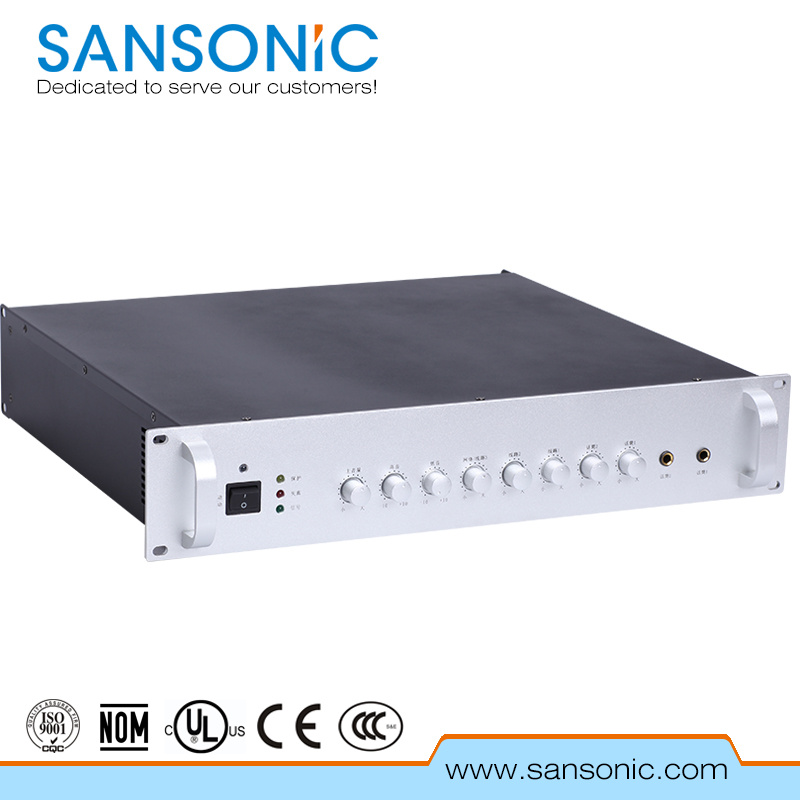

PIA120series is the high performance audio amplifier which are designed for commercial and industrial public address applications. This type is the standard mount design, rated power is 120W to provide a wide selection for different sound system. Both balanced and unbalanced line inputs are selectable, 100V, 70V and 4ohm are selectable for different speaker installation matching. Complete protection includes short circuit, overload and overheat automatic protection.
Features
1. Standard mount design, humanistic design, exquisite technique, show the top grade quality
2. MIC1-2 microphone balanced input,
3. AUX1-2 line RCA linear input, AUX3 line RCA linear or RJ45 input
4.1V600Ω Pre-out
5. Constant pressure output 100V/70V and rated resistance 4Ω ;
6. Signal lamp, peak lamp display
7. On/off impact protection speaker
Application and management
Applied in airport, station, coffee shop, market, square, school, park, district and other places.
Port allocation:
1. MIC 1~6 line microphone balanced input, input sensibility: 3~10mV;
2. Aux 1~2 line RCA linear input, input sensibility: 100mV or 300mV switchable;
3. Aux 3 line RCA linear input or RJ45 input, input sensibility: 100mV or 300mV switchable;
4.4Ω , 70V, 100V output terminal multi-impedance output
5. Pre-out 1V 600Ω ;
Specification |
|
Model | PIA120 |
Power Requirement | 110~125V AC or 220~230V AC,50/60Hz |
Rate Output | 120W |
Distortion | Less than 0.8% at 1 kHz |
Frequency Response: | 50~15,000Hz(±3dB) |
Output | Pre Output | 0dB, 600ohm Unbalanced, RCA pin jack |
Direct Output | High Impedance: 100V\70V screw terminal |
Input | MIC1-2: | 3 ~ 10mV balanced Phenix Input |
| AUX1-2: | 300mV/100mV (-10dBV/-20dBV) Selectable Unbalanced,RCA pin jack |
| AUX 3/NETWORK INPUT: | 300mV/100mV(-10dBV/-20dBV)Selectable Unbalanced,RCA pin jack,RJ45 |
Working temperature: | -10to +40 |
Size(W*H*D) : | 483X90X410MM |
Color: | Black |
Weight: | 11kg |
SANSONIC Technology Co., Ltd is a systematic enterprise that is concerned with researching, developing, manufacturing and sales of Public Address Systems, Emergency PA Systems and Professional Sound Systems & Speaker, Accessories. Currently, Switching Power Module, Class D Amplifier. Also principally undertake domestic and professional audio products OEM, ODM business. Located in the beautiful seashore city _ Shenzhen, China, sansonic has 370 employees and more than 200000 square meters factory area.
After ten years operation, SANSONIC Technology has set up research and development, sales team in California and Jiang Su of Suzhou...And Design Department in Taiwan, USA, China Its technical team has served in the U. S. Our factory has passed the ISO9001 quality management system, all of products comply with UL\CE\CCC\BSMI\GOST-R\Brazil UC\Mexico NOM, which are sold America, Europe, the Middle East, Southeast Asia, China and other countries and regions;
SANSONIC Technology has a safe and comfortable air conditioning factory workshop, clean machine shop, SMT automated production workshop, DIP lines, renovation lines, assembly lines, testing lines, packaging lines, maintenance lines and other production lines. We Simultaneously own the high and low temperature test, spray test, vibration test, drop test and a series of reliability test equipment which can be used to manufactured complex, rigorous process, high quality, high demand products. Perfect internal matching has create conditions for the development of enterprise. We can accept customer rigorous evaluation and tests both in hardware and software facilities.
We firmly adhere the management idea of "Your choice, our service" and do our best to create a higher market value with our customer.
