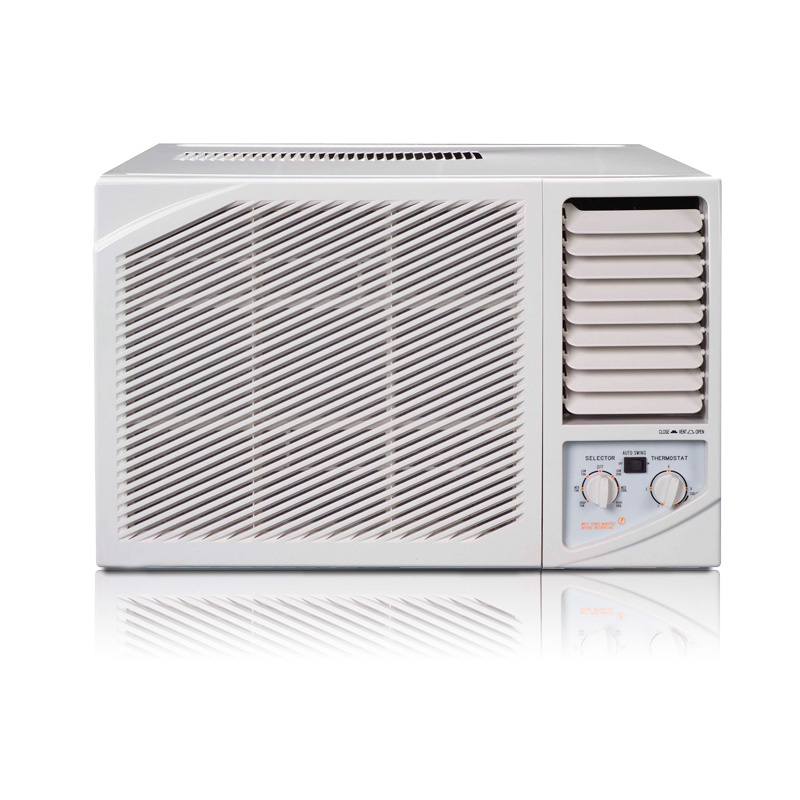

12000Btu Cooling Only T3 Window Air Conditioner
Feature
1. Fresh air switch
2. Unique quiet design
3. Slinger-up system
4. Sliding chassis
5. Two drainage methods
6. Cooling only T3 window air conditioner
7. Automatic restart function
8. Intelligent defrosting
9. Intelligent control, easy operation
10. 5 years warranty for compressor, and 2 years for complete unit
11. 1% free spare part of total amount
Specification
Power supply | Ph-V-Hz | 230V~ 60Hz, 1Ph |
| Cooling | Capacity | Btu/h | 12000 |
| Input | W | 1170 |
| Current | A | 4.9 |
| EER | W/W | 3 |
| Heating | Capacity | Btu/h | N/A |
| Input | W | N/A |
| Current | A | N/A |
| COP | W/W | N/A |
| Moisture Removal | L/h | 1.2 |
| Rated input consumption | W | 1530 |
| Rated current | A | 7.7 |
| Starting current | A | 27 |
| Compressor | Model |
| ASM106N1UFT |
| Type |
| ROTARY |
| Brand |
| GMCC |
| Indoor side air flow(Hi/Mi/Lo) | m3/h | 470/420/350 |
| Indoor side noise level (Hi/Mi/Lo) | dB(A) | 55/53.5/52.5 |
| Outdoor side noise level (Hi/Mi/Lo) | dB(A) | 64/62/60 |
| Refrigerant type | kg | R410A/0.55 |
| Design pressure | MPa | 4.2/1.5 |
| Plug type |
| 16x3/SP008 |
| Control type |
| Mechanical Control |
| Operation temp | indoor(cooling/heating) | ºC | 17-32/--- |
| outdoor(cooling/heating) | ºC | 18-43/--- |
| Application area (Cooling Standard) | m2 | 16-23 |
| Dimension(W*D*H) | mm | 600x560x380 |
| Packing (W*D*H) | mm | 685x620x430 |
| Net/Gross weight | Kg | 36.3/38.5 |
| Loading quantity 20' /40' /40'HQ | Pieces | 135/285/342 |
