Features for our Flake Ice Making Plant:
1. Reasonable design for the structure, save space, easy to install.
2. Energy-saving.
3. Ice dropping automatically, no ice dropping auxiliary equipment, lower error rate.
4. water-cooling & air-cooling
5. Installation under the operation instruction, supply failure alarming system, no need worker to monitor.
The machine is equiped with PLC programme, which allows multuple functions like automatic start and shut down and stop ice production when the ice bin's full.

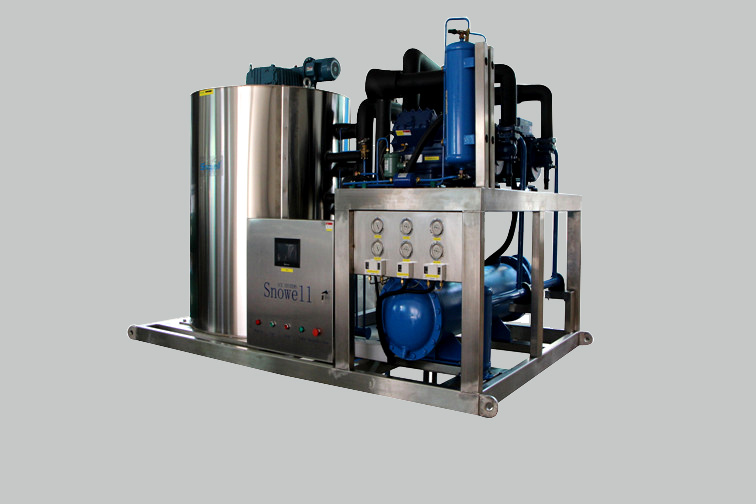

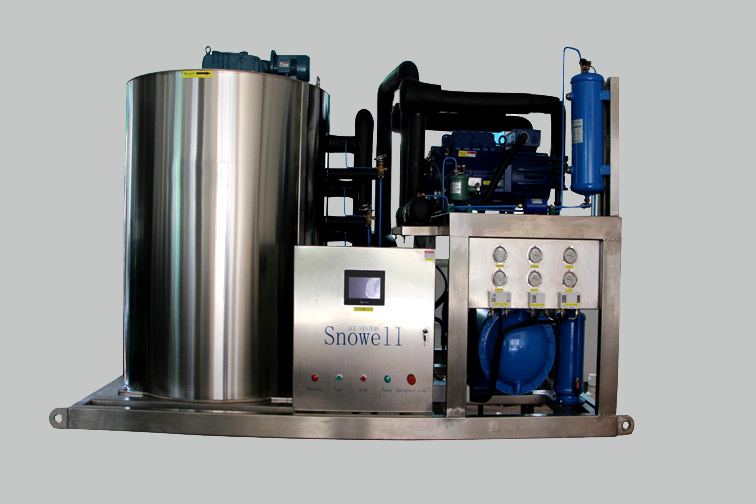

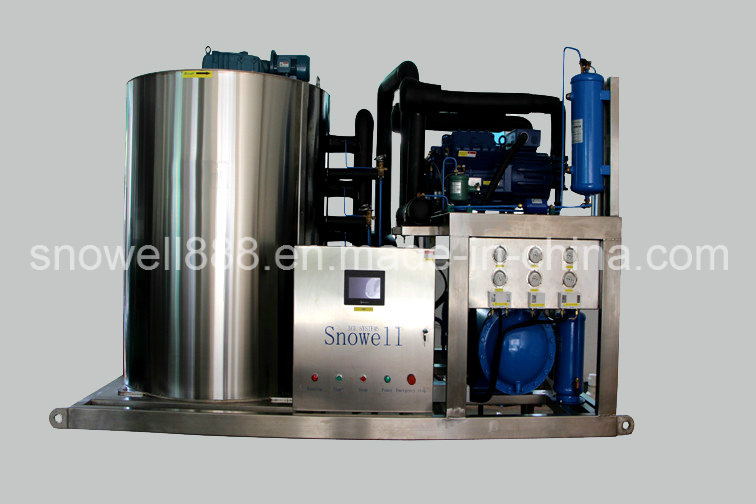

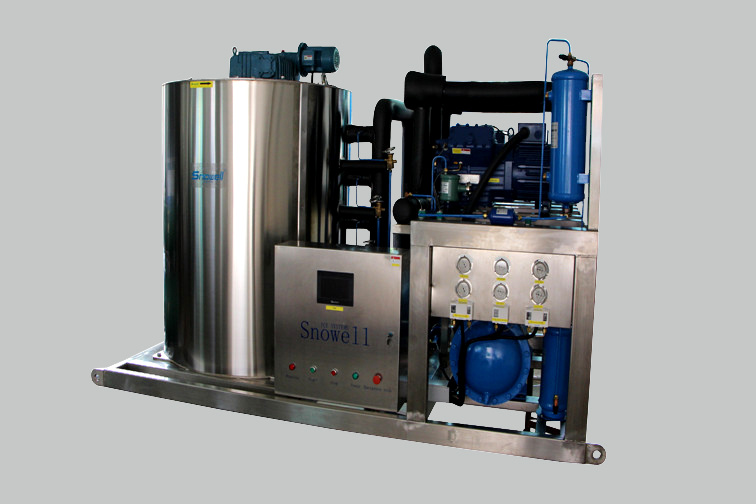

Pictures of 10T/day flake ice machine:
Technical parameters for our 10Tons/24hours Flake Ice Machine:
NO. | Description | Specifications |
1 | Design capacity | 10,000kg/24hours |
2 | Refrigeration capacity | 56000Kcal/h |
3 | Refrigerant | R404A |
4 | Total input | 34kW |
5 | Power of compressor | 31kW |
6 | Power of cooling tower pump | 2.2kW |
7 | Power of cooling fan | 0.55Kw |
8 | Power of reducer | 0.75kW |
9 | Power of water pump | 0.18kW |
10 | Power of brine pump | 0.016kW |
11 | Power supply | 3P/380V/50Hz or customize |
12 | Nominal current | 60A |
13 | Cooling mode | Water cooling or air cooling |
14 | Evaporating temp. | -20°C |
15 | Condensing temp. | 38°C |
16 | Ice flake temp. | -5°C |
17 | Thickness of ice flake | 1.5-2.2mm |
18 | Water feeding pressure | 0.1Mpa-0.5Mpa |
19 | Dia.of water inlet pipe | 5/8" |
20 | Design ambient temp. | 35°C |
21 | Design water inlet temp. | 22°C |
22 | Noise (within 2m) | 72dBA |
23 | Unit dimension (mm) | 2500*2000*2050 |
24 | Unit weight | 1310kg |
Shenzhen Snowell Refrigeration Equipment Co., Ltd is founded in May, 2006, with registration capital 25 million in US Dollar. As one experienced manufacturer of refrigeration equipments in China, SNOWELL has been dedicated into researching and developing refrigeration technology. We mainly design and manufacture ice flake machine, ice tube machine, ice cube machine, ice block machine, ice plate machine, water chiller, concrete cooling system, automatic ice storage system, dynamic ice storage system and all kinds of cold rooms.
Headquartered in Shenzhen, Snowell has 3 Industrial Parks. Marketing network has been extended to many domestic cities, such as Beijing, Shanghai, Guangzhou, Qingdao, Dalian and Wuhan, and abroad, such as Middle East, Southeast Asia, Europe, Australia, America, Africa and so on.
Snowell attracts numbers of excellent and professional talents and has scientific and research and talents cooperation with many Chinese famous colleges and universities. We have achieved several national patents and get the pressure vessel manufacture license. Snowell products have passed CE, UL, ISO9001, ISO14000 certificate.
After almost 10 years of development, Snowell has become the most competitive manufacturer of ice making system and other refrigeration equipments.
