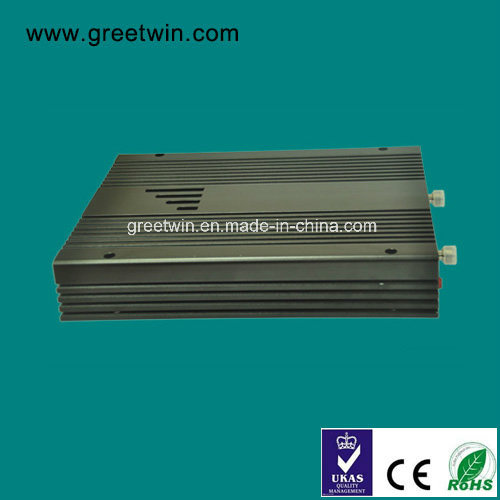

10dBm DCS+WCDMA+LTE2600 Tri Band Repeater/Signal Amplifier
GW-10DWL
Model:
GW-10DWL, 10dBm
GW-15DWL, 15dBm
GW-20DWL, 20dBm
GW-24DWL, 24dBm
GW-27DWL, 27dBm
GW-30DWL, 30dBm
Tri-Band Signal Booster series is an ideal solution for three wireless system in small/medium businesses and home users looking to enhance indoor 2G&3G wireless connectivity. It is connected via coaxial cable to Tri-Band Donor Antenna and Service Antenna, Tri-Band Donor Antenna is placed outside the building where it has easy access to BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area.
Features:
1. Cost effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption, easy installation, great cover.
Expansion and extention of the signal of base station. Optimization of the quality of the signal and source
3. Cover about 500~2000m² Without block or obstruct.
4. High linear design, ALC function design, low interference to BTS.
5. Support any cellular devices (voice & data & video)
6. Wide band signal booster, or customize selective band booster.
7. Support System CDMA800, GSM, DCS, PCS, WCDMA, LTE 4G etc
Recommended Accessories:
1)Donor antenna: Log Periodic Antenna (9dBi, 806-960/1710-2700MHz)
2)Service antenna: Omni Ceiling Antenna (3dBi, 806-960/1710-2700MHz)
3)5D-FB coaxial cable with connecter (Cable length optional)
Application:
To expand signal coverage of fill signal blind area where signal is weak or unavailable.
Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, Shop. Etc.
| FrequencyRange | Uplink | Downlink |
| GSM900+DCS1800+WCDMA | 890- 915/1710 - 1785/
1920 - 1980MHz | 935 - 960/1805 - 1880/
2110 - 2170MHz |
| EGSM900+DCS1800+WCDMA | 880- 915/1710 - 1785/
1920 - 1980MHz | 925 - 960/1805 - 1880/
2110 - 2170MHz |
| GSM900+DCS1800+LTE2600 | 890- 915/1710 - 1785/
2500 - 2570MHz | 935 - 960/1805 - 1880/
2620 - 2690MHz |
| DCS1800+WCDMA+LTE2600 | 1710 - 1785/1920 - 1980/
2500 - 2570MHz | 1805 - 1880/2110 - 2170/
2620 - 2690MHz |
| GSM850+PCS1900+LTE2600 | 824 - 849/1850 - 1910/
2500 - 2570MHz | 869 - 894/1930 - 1990/
2620 - 2690MHz |
| Max. Gain | 65dB | 70dB |
| Max. Output Power | 10-15dBm | 10-20dBm |
| Band width | Wide Band |
| Manual Gain Control | 31dB / 1dB Step |
| Automatic Gain Control | >20dB |
| Ripple in-band | ≤6dB |
| Return loss | ≤ -10dB |
| Noise Figure | ≤ 6dB |
Spurious Emission
&Intermodulation | 9KHz~1GHz | ≤ -36dBm |
| 1~12.75GHz | ≤ -30dBm |
| WCDMA | Spurious Emission Mask | Meet 3GPP TS 25.143 ( V 6.2.0 ) |
| Modulation Accuracy | ≤ 12.5% |
| Peak Code Domain Error | ≤ -35dB@Spreading Factor 256 |
| Time Delay | ≤ 1.5 μs |
| Frequency stability | ≤ 0.01ppm |
| MTBF | > 50000 hours |
| Impedance | 50 ohm |
| Power Supply | AC100-240V,DC9V/5A |
| Power LED | Power Indicator |
| Mechanical Specification |
| RF Connector | N-Female |
| Switch | Power Switch\Manual Gain Control Switch |
| Cooling | Heatsink Convection cooling |
| Humidity | < 90% |
| Operating Temperature | -10'c~55'c |
| Environment Conditions | IP40 |
| Installation Type | Wall Installation |
| Size | 268mm*58mm*350mm |
| Weight | < 6.5Kg |
|
|
|
|
|
