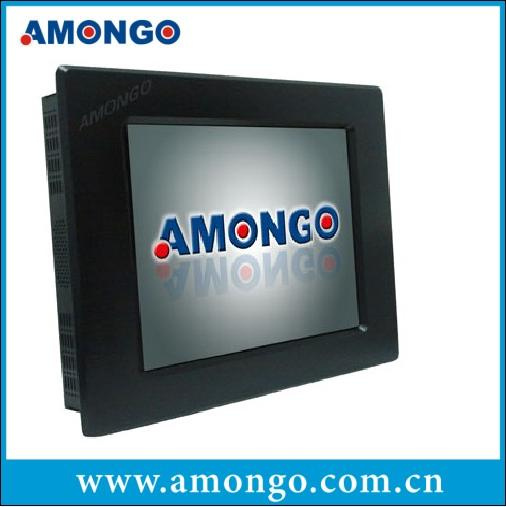

10.4'' Industrial Touch LCD display with 1024X768 high resolution, LED Backlight
Features:
350nits/1024X768 support wide temperature range
IR, Capactive, PCT Multi Touch Screen panel Optional
Normal brightness and 1000nits/1500nits high brightness optional
VGA, DVI, Interface
HDMI, AV, VIDEO, AUDIO Interface optional,
Explosion proof, Dust proof
Water proof, dust proof, vandal proof
Superior Durability, drift free
Contamination resistance, long life
Mechanical structure, easy installe
Easy replacement
High definition LCD monitor
High performance graphic controller on board
Cable sets, OSD and power supply available
Vesa-mount &Rear-mount
FCC, CE, CCC, RoHS
Any Customized design available
Hardware specification:
Model NameAMG-10IPXD03N1-V1
Viewable Size Image10.4"
Active Display Area (mm)211.2 (H)X158.4(V)
Pixel Pitch (mm)0.264(H)X0.264V)
Number of Pixels1024 X 768
Contrast Ratio500: 1
Display Color262, 144(6 bit + FRC)
Brightness (CD/m^2)230 CD/m^2
Viewing Angle (CR >=10)140/120
Synchronization Range
Horizontal / Vertical20~75Hz
Recommended Resolution800X600@60Hz, 75Hz
Signal ConnectorDB44
Power SourceDC 12V
Power Consumption8.3W typical, normal operation
Power ManagementVESA DPMS Compliant
Plug & PlayVESA DDC 1/2B
Optional Video InputNo
Optional DVI InputNo
Optional Touch ScreenNo
Applications
1. Kiosk information system
2. Gaming and amusement
3. Light industrial shop-floor automation
4. ATM
5. Medical treatment & medical player
Trade terms
1. Payment terms: 30% deposit by T/T when order confirmed, the balance shall be paid before the shipment by T/T.
2. Production lead time: 10-15days according to the order quantity
3. Sample lead time: 7days when there have stock material, 10days for current design, 15days for new design
4. Shipping Port: Shenzhen, China
5. Discounts: Based on the quantity, normally above 100PCS, we will give special discounts
6. MOQ: 1PC, any sample order are welcome for testing our quality
7. Discount for cooperative express company: TNT, DHL
About us
Amongo technology Co., Ltd. is a leading manufacturer specialized in designing & producing Industrial LCD Monitor, Open Frame, Touching monitor, etc., we developed a large number of LCD items, from 6.5'' to 42'' as well as A/D board and inverter board. The main application is for ATM, Self-service Kiosk, and industrial control area. Any OEM product is available
With years professional experience in industrial LCD display, strong R&D teamwork and excellent quality control system, we had cooperated successfully with some of biggest ATM manufacturers worldwide. With a large production capacity of 10, 000PCS monthly, it's available for us to do the delivery in a short time. Our main markets: America, European, Middle-East countries and Asia areas.
