Low-cost？program
Accurate, fast？touch？response
Finger,？gloved hand？and？touch？the？pen？to？activate
Durable？surface？pollution prevention？and chemicals
Anti-glare？surface treatment
4-wire resistive touch screen, you can use the pen, finger, a gloved hand, credit card, and many other touch medium, can resist liquid, food and all kinds of impurities, has very strong adaptability to all kinds of pollution, with good stability and reliability at the same time, has the characteristics of light easy assembly and low cost, portable mobile devices, personal assistant, industrial control, medical equipment, etc. Use frequency is high, the user clear application system of the ideal input device
RS232&USB controller optional,1 years warranty!
More detail pls contact with our sales!
|
Item |

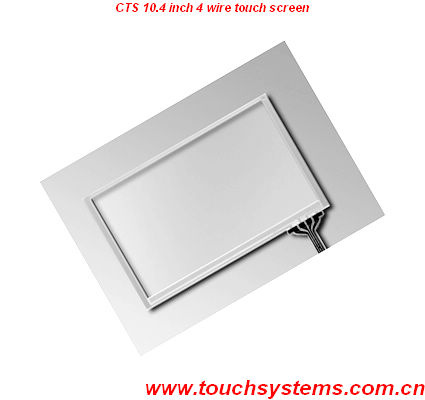

Four wire resitive Touch screen |
|
|
|
|
Model |
T104S-4RB003B |
|
Size |
10.4 inch |
|
Type |
Film to glass |
|
Resolution |
4096× 4096 |
|
Transprency |
≥80% |
|
Linearity |
X≤ 1.5% Y≤ 1.5% |
|
Chattering |
(typical) ≤ 10ms |
|
Tail |
FPC material |
|
Resistance |
X: 250Ω~450Ω |
|
|
Y: 400Ω~800Ω |
|
Operating force |
50g-120g |
|
Operating temperature |
-10~+60 deg |
|
Storage temperatire |
-20~+70 deg |
|
Touch life time |
> 100W times |
|
|
|
|
Frame area(mm) |
225.3×172.8 |
|
View area(mm) |
215.5×162 |
|
Active area(mm) |
211.5×158 |
