| Prod Model: |
ELP-USB100W04H-L36 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Image Sensor: |
Ov9712 |
| Optional Video Format: |
H.264/Yuy2/Mjpeg |
| Support OS: |
Windows,Android,Linux |
| Adjustable Parameters: |
Brightness/Contrast/Color Saturation /Definition/G |
| USB Cable: |
1/2/3/4/5m Optional |
| Lens Option: |
2.1/2.8/3.6/6/8/12mm/170 Deree Fisheye Lens |
| Certification: |
FCC |
| HDMI Format: |
720P |
| Effective Distance: |
10-30m |
| Sensor Size: |
1/4 inch |
| Remote Control: |
Without Remote Control |
| Type: |
Video Camera |
| Sensor: |
CMOS |
| Feature: |
Mini Size |
| Kind: |
Manual Focus Lens |
| Technology: |
USB UVC |
| Horizontal Resolution: |
1280*720 |
Product Description

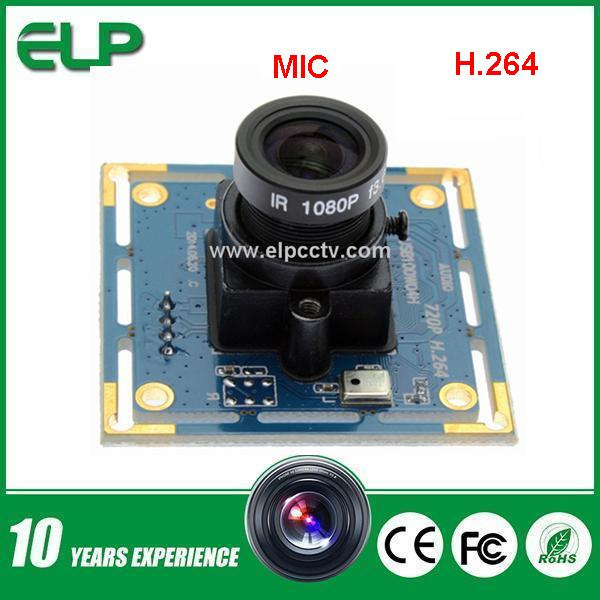

1.0 megapixel 720P H.264 usb camera modulewith Microphone
Features
*720P resolution 1280x720P
*USB interface Camera Module for Monochrome Stereo
*Android&Linux system support
*YUY and MJPEG compression format optional
*CMOS 720P sensor for high quality image and low power consumption
*High speed USB 2.0 interface for high resolution PC camera interface
*high pixel technology for sharp image and accurate color reproduction
*low light performance - ideal for any lighting condition
*Super small outline and thin profile for embedded applications
*High frame rate- deliver 30 fps in 1280X720 resolution
*High quality lens, true and undistorted color image
*Low power consumption - ideal for portable equipment
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above
*Camera with UVC
Specification:
Optional models |
ELP-USB100W 04H -L21(2.1mm lens)
ELP-USB100W04H -L28(2.8mm lens)
ELP-USB100W04H-L36 (3.6mm lens)
ELP-USB100W04H -L60(6mm lens)
ELP-USB100W04H-L80(8mm lens)
ELP-USB100W04H -L12(12mm lens) |
Sensor |
OV9712 |
Lens size |
100W, 1.0megapixel, 1280X720 |
Max. Resolution | 1280*720 720P |
Picture format |
YUY2
MJPEG |
USB Protocal |
USB2.0 HS/FS, USB1.1 FS |
Support free driver |
USB Video Class(UVC)1.1 |
Auto exposure AEC |
Support |
Auto white blance AEB |
Support |
Frame rate |
1280 (H) x 720 (V) pixels MJPEG 30fps YUY2 10fps
960 (H) x 720 (V) pixels MJPEG 30fps YUY2 15fps
800 (H) x 600 (V) pixels MJPEG 30fps YUY2 20fps
640 (H) x 480 (V) pixels MJPEG 30fps YUY2 30fps |
Adjustable parameters |
Brightness/Contrast/Color saturation /Definition/Gamma/WB |
Night vision |
optional, can choose IR board |
view angle |
30-150 degree optional |
voltage |
DC 5V |
current |
150mA |
work temperature |
DEGREES(-20~70) |
Size |
32x32mm |
Support OS |
WinXP/Vista/WIN7/WIN8
Linux with UVC
Mac-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above |
